DIGITAL IR LANGUAGE DISTRIBUTION SYSTEM

Booth for Interpreter (VIS-BTH-D)

Quick Tool-Free Assembly, ISO Standard Sound Insulation, Efficient Silent Ventilation, and Complete Portable Kit for Professional Simultaneous Interpretation[cite: 23].

INQUIRY NOW SPECIFICATIONS

Standard 2-Person Portable Interpretation Booth

The 2-Person Interpretation Booth is a lightweight, modular, and easy-to-install unit built to ISO 4043 standards[cite: 23]. It features 35mm thick panels and a sturdy aluminum alloy frame[cite: 23]. The interior includes sound-absorbing panels to reduce dust and ensure comfortable breathing for interpreters[cite: 23].

  • Tool-Free Setup: Modules connect using hook-style fittings, requiring no tools for installation[cite: 23].
  • Rapid Deployment: Installation time takes approximately 5 minutes[cite: 23].
  • Complete Kit: Includes 8 panels (4 with windows, 1 door panel), 2 roof covers, 1 tabletop, 2 cable holes, 1 ventilation hole, and 2 ventilation fans[cite: 23].
  • Safety Door: Outward-opening door meets strict event safety standards[cite: 23].
  • Silent Air Circulation: Top-mounted ventilation fan with 8 air changes per minute[cite: 23].
GET A QUOTE

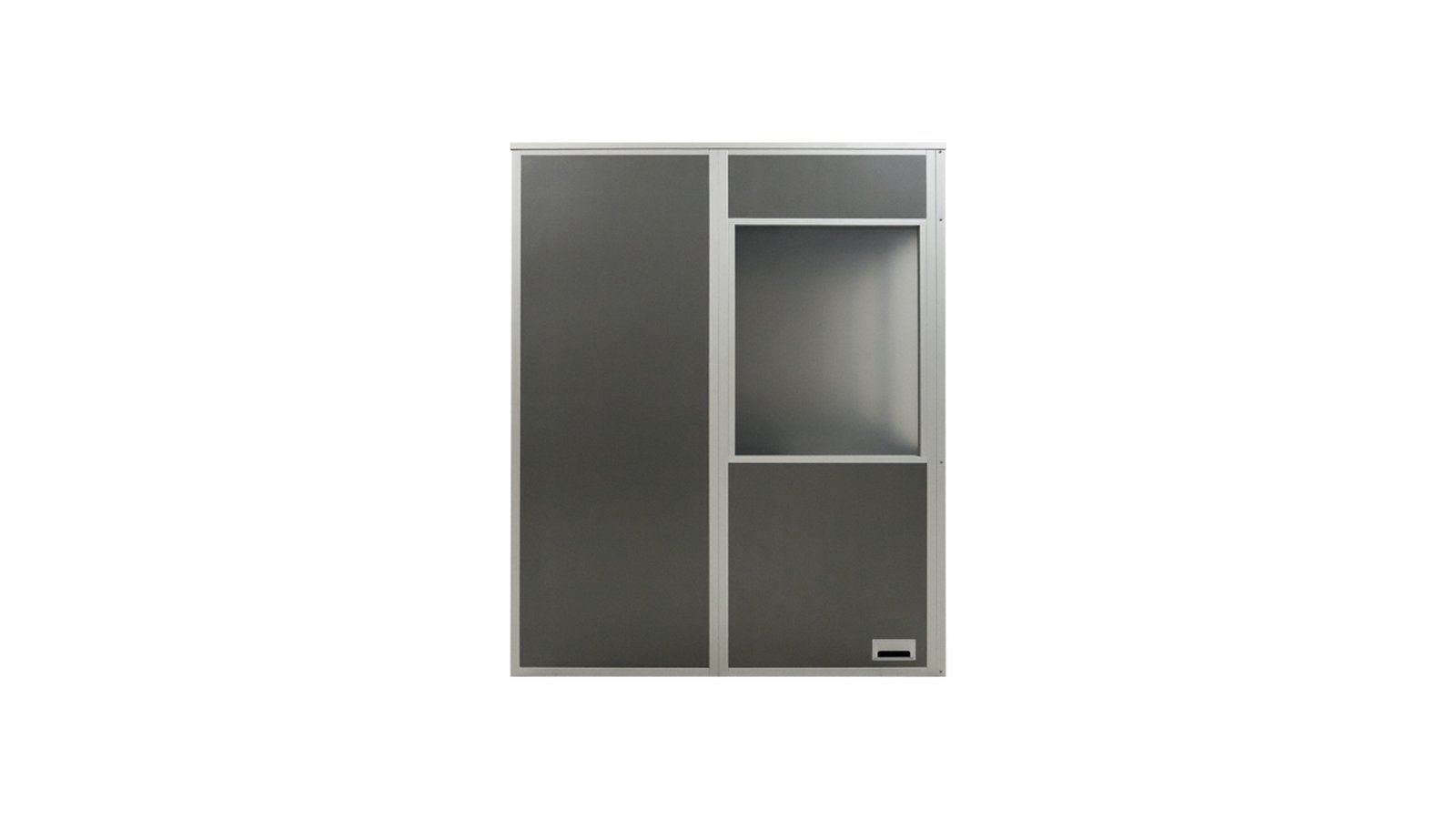

VISSONIC VIS-BTH-D Interpreter Booth

Key System Highlights

ISO 4043 Compliance

Engineered to meet global standard sound insulation requirements for professional simultaneous interpretation booths[cite: 23].

5-Minute Quick Assembly

Hook-style modular connection system enables setup in 5 minutes without using a single external tool[cite: 23].

Silent Top Ventilation

Top-mounted dual fan ventilation delivers 8 silent air changes per minute to maintain high air freshness[cite: 23].

Sound Absorbing Interior

Interior walls lined with sound-absorbing materials to reduce reverberation and eliminate dust accumulation[cite: 23].

Booth Structure & Configurations

VIS-BTH-D Front Perspective View
VIS-BTH-D Side View Structure

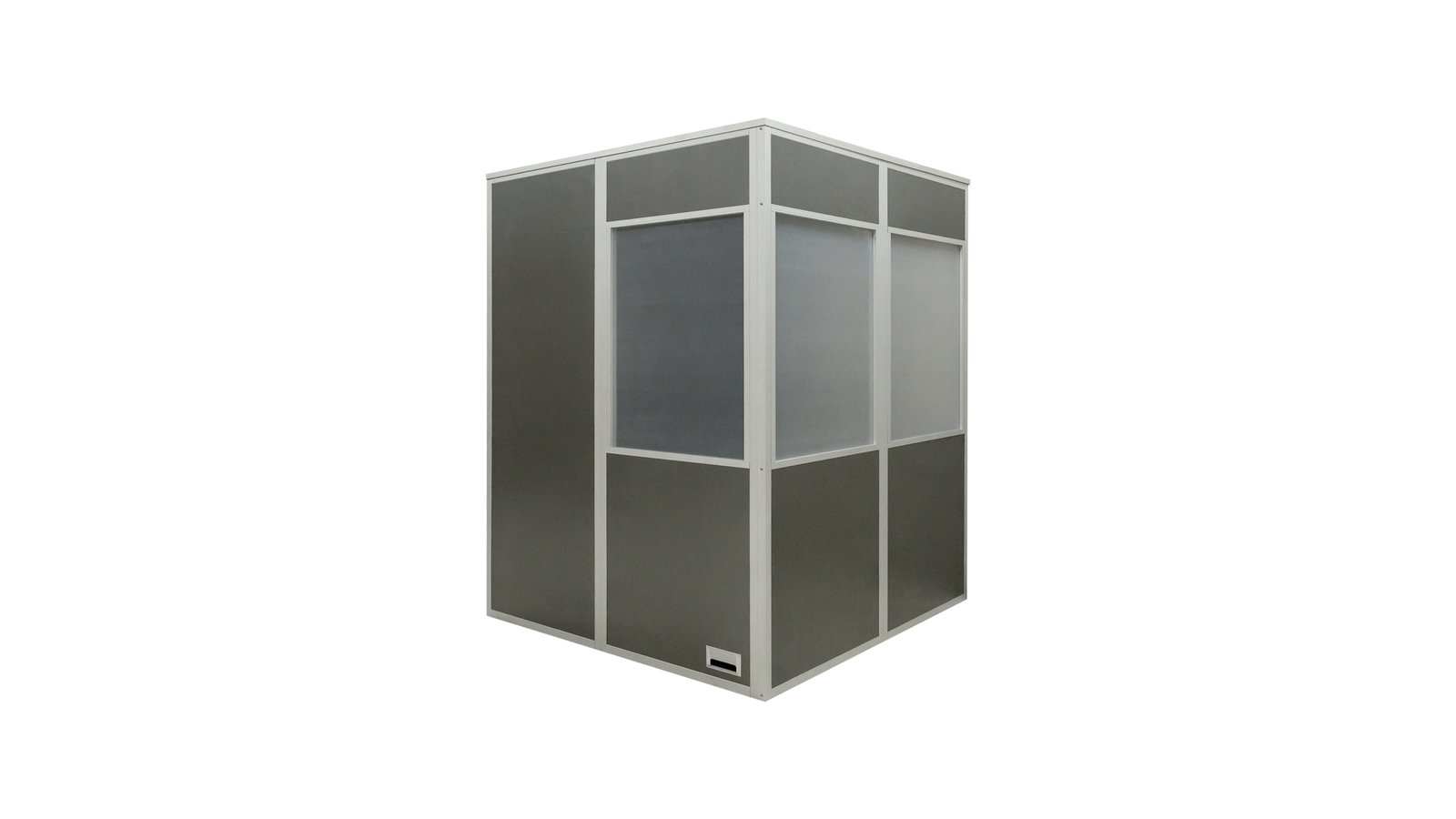

VIS-BTH-D Rear Door View

Technical Specifications

VIS-BTH-D Detailed Parameters

Model
VIS-BTH-D[cite: 23]
Panel Thickness
35 mm thick acoustic panels with aluminum alloy frame[cite: 23]
Assembly Mechanism
Hook-style modular fittings (Tool-Free)[cite: 23]
Assembly Time
Approximately 5 minutes[cite: 23]
Complete Set Components
8 panels (4 with windows, 1 door panel), 2 roof covers, 1 tabletop, 2 cable holes, 1 ventilation hole, 2 ventilation fans[cite: 23]
Standard Window Size
860mm high x 680mm wide[cite: 23]
Tabletop Height & Size
740mm height from ground; dimensions: 1630mm x 500mm[cite: 23]
Cable Hole Dimensions
100mm x 80mm[cite: 23]
Ventilation System
Silent top-mounted ventilation fan with 8 air changes per minute[cite: 23]
Door Standard
Outward-opening safety door[cite: 23]

Frequently Asked Questions

Q: Does the VIS-BTH-D booth require external tools for installation?
A: No! The panels connect using integrated hook-style modular fittings, allowing complete assembly in ~5 minutes without tools[cite: 23].
Q: Is the booth compliant with international simultaneous interpretation standards?
A: Yes, it is built to strict ISO 4043 standards for soundproofing, visual clarity, and interior ventilation[cite: 23].
Q: How many interpreters can comfortably work inside?
A: It is designed specifically as a 2-person simultaneous interpretation booth with an integrated 1630mm x 500mm tabletop[cite: 23].
