Reliable Wireless Tour Guide System
The TT109 Tour Guide Communication System is a professional wireless audio transmission solution designed for situations where clear communication with a group is essential.
The system consists of a transmitter used by the speaker and multiple receivers used by listeners, allowing everyone in the group to clearly hear the presenter even at long distances.
The TT109 system is widely used for:
- Guided tours and tourism groups
- Outdoor travel activities
- Religious pilgrimages such as Hajj and Umrah
- Training sessions and workshops
- Simultaneous interpretation events
Its portable design, simple operation, and reliable signal transmission make it an ideal communication tool for professional tour guides and event organizers.
Products Features
Long Transmission Distance
The TT109 wireless communication system offers a transmission distance of up to 180 meters (590 feet) in open environments.
This allows tour guides or presenters to move freely while maintaining clear communication with listeners.
It is especially useful for:
- Outdoor tour activities
- Pilgrimage travel groups
- Segway tours
- Large training areas
- Museum tours
Lightweight & Pocket-Sized Design
The TT109 devices are designed for comfort and portability.
- Transmitter weight: 60g
- Receiver weight: 51g
Their lightweight design ensures that users can wear the device around the neck or keep it in a pocket without discomfort.
The compact size also allows guides to carry multiple devices easily for group tours.
Automatic Channel Pairing
The TT109 system supports one-button automatic pairing.
Within 10 seconds, the transmitter can synchronize its channel ID with all receivers.
This feature eliminates the need to manually adjust each receiver channel, saving time during setup.
It is especially useful for large groups where many receivers must be configured quickly.

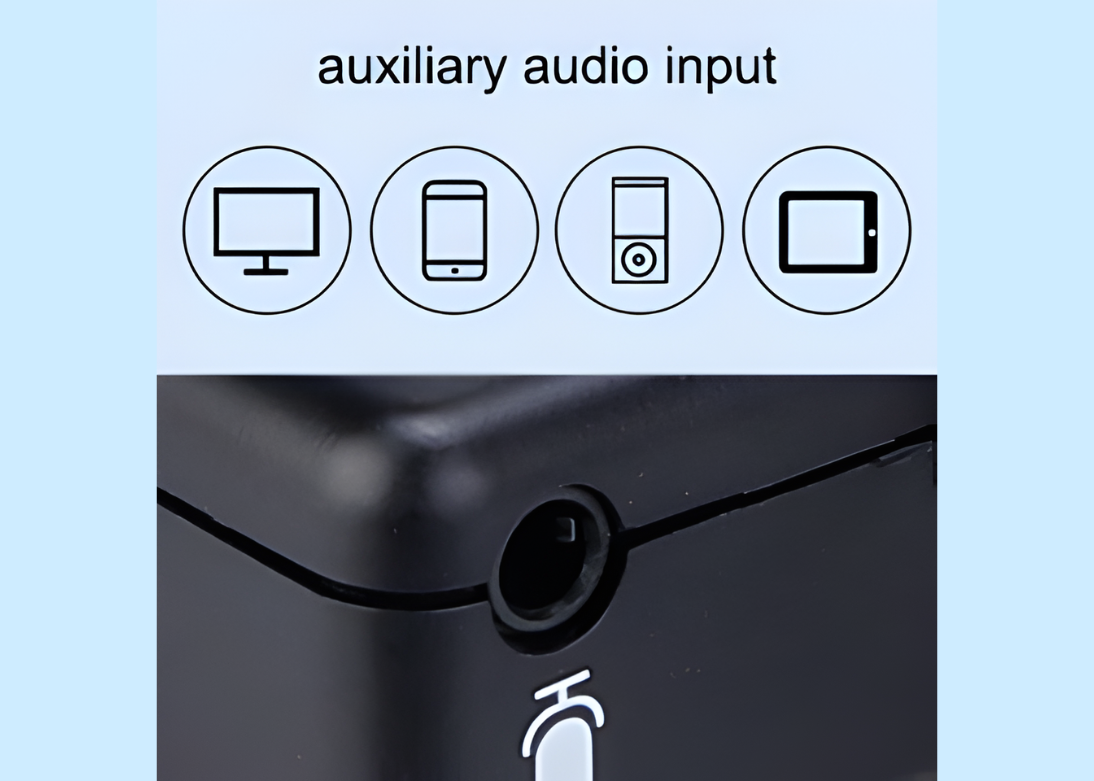

AUX Audio Input
The transmitter includes a 3.5mm AUX input, allowing external audio devices to connect directly.
Users can transmit audio from:
- Smartphones
- MP3 players
- Computers
- External audio devices
This allows guides or presenters to play audio recordings, music, or educational content during tours or training sessions.
Adjustable Volume Control
The TT109 system includes independent volume control options.
- Transmitter: 5 volume levels
- Receiver: 10 volume levels
This allows users to adjust the sound level based on the surrounding environment or individual hearing preferences.
Even elderly users or those with hearing difficulties can comfortably listen to the audio.
2.4GHz Wireless Technology
The TT109 system operates on 2.4GHz wireless frequency, which provides several advantages:
- Stable signal transmission
- Reduced interference
- Clear audio quality
- Secure wireless communication
This ensures that listeners receive clear and uninterrupted sound during tours or presentations.
Long Battery Life
The TT109 wireless communication system is designed for long working hours during extended activities.

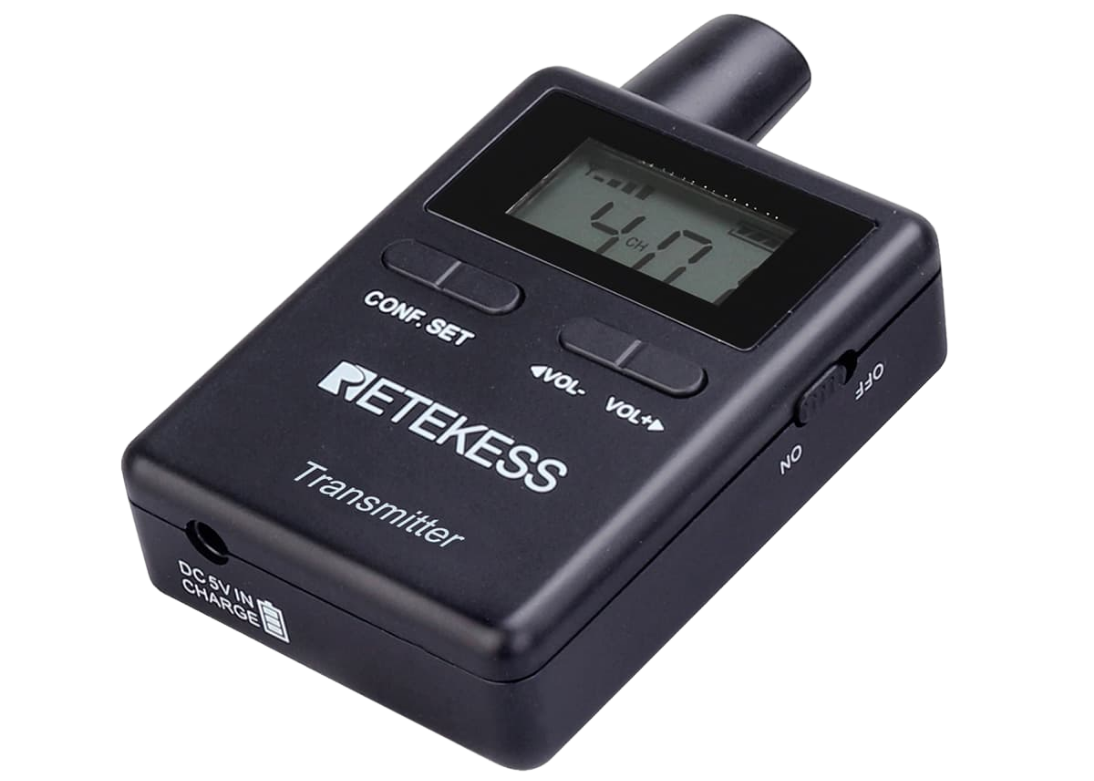

Transmitter
Battery Capacity
1500mAh lithium battery
Working Time
Approximately 8 hours

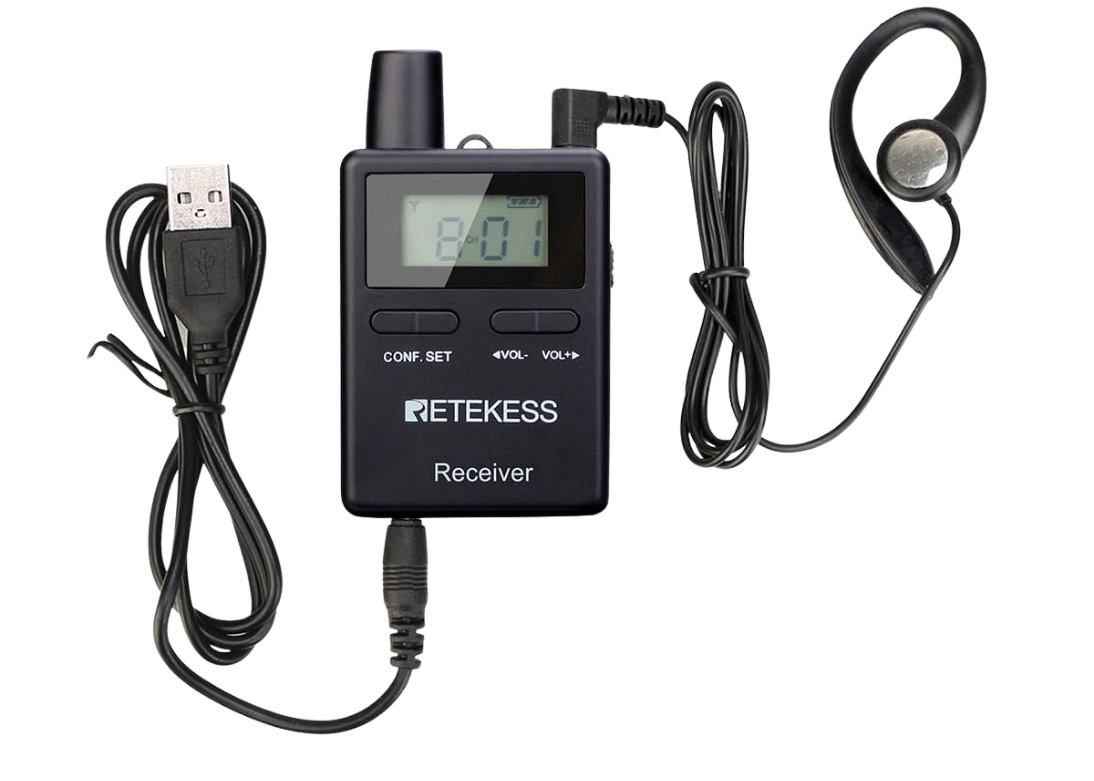

Receiver
Battery Capacity
1000mAh lithium battery
Working Time
Approximately 18 hours
This ensures that the system can operate throughout long tours or full-day training events without interruption.
Fast Charging
The devices can be fully charged within 2–3 hours, allowing them to be quickly prepared for the next event or activity.
Portable Charging Storage Case
The optional charging case allows users to charge and store multiple devices simultaneously.
The case can charge:
- 2 transmitters
- 30 receivers
Charging Case Benefits
- Organized storage for devices and accessories
- Faster preparation before events
- Durable aluminum alloy structure
- Fireproof and heat-resistant design
- Built-in heat dissipation system
This makes it easy to transport the equipment safely during tours or events.
Flexible Usage Modes
The TT109 system supports three communication modes, making it suitable for different applications.

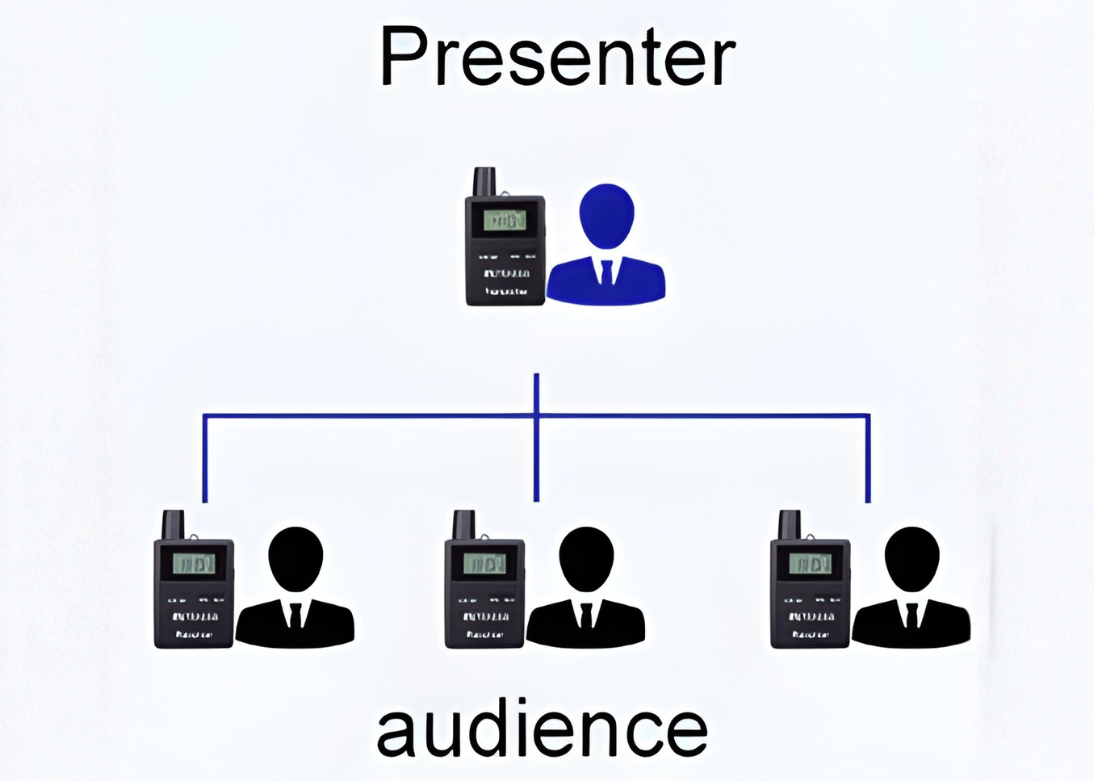

One-to-Many Communication
One transmitter communicates with multiple receivers on the same channel.
This mode is ideal for:
- Tour guide explanations
- Training sessions
- Presentations

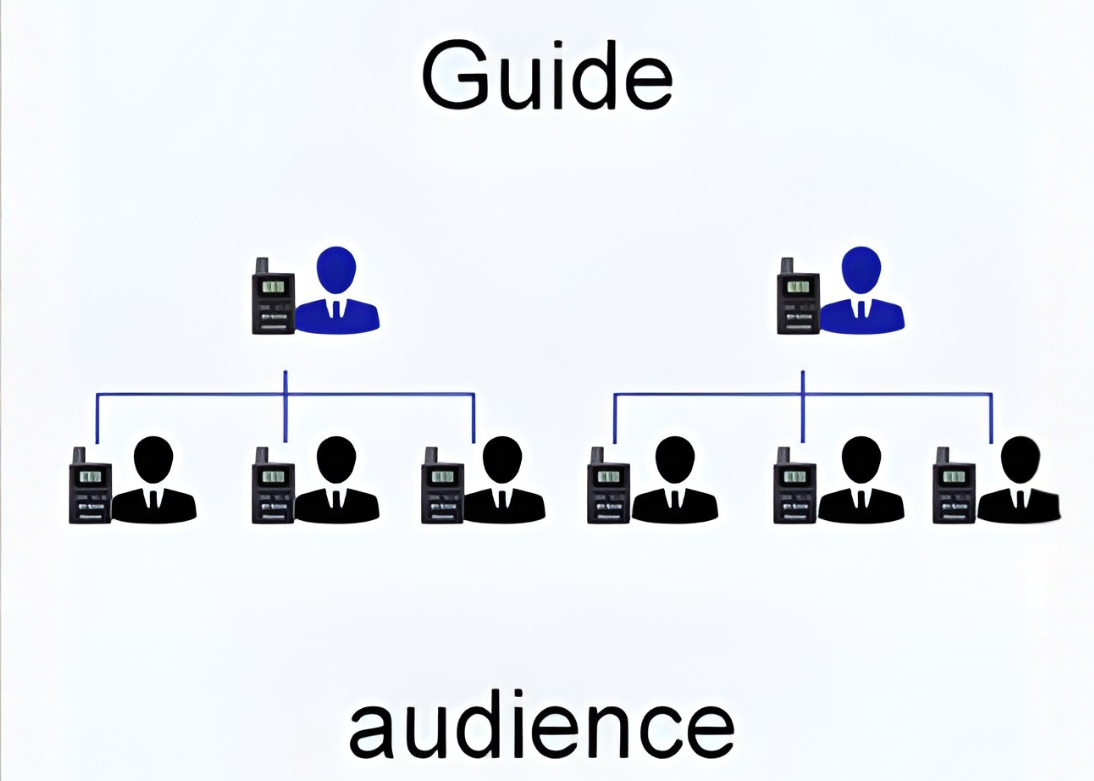

Multi-Group Communication
Different groups can operate on different channels.
Each group uses the same channel within their group, allowing multiple tours or sessions to run simultaneously without interference.

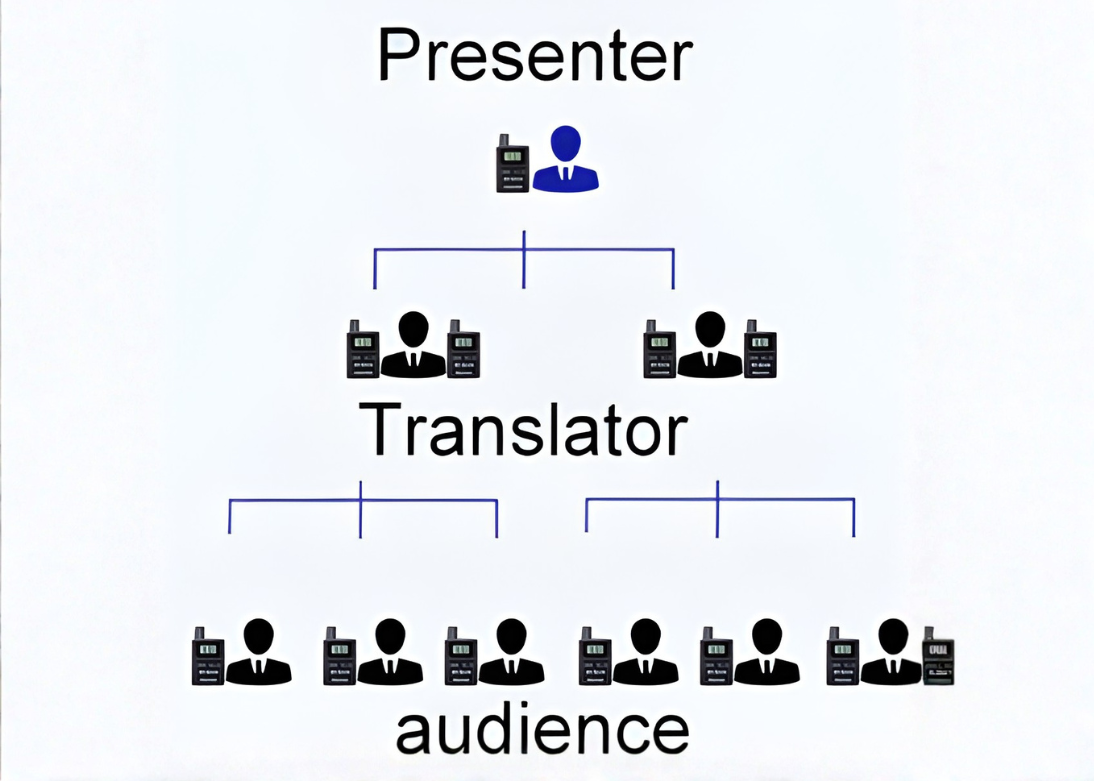

Simultaneous Interpretation Mode
This mode supports multilingual communication.
Process:
- The interpreter listens to the presenter using a receiver
- The interpreter translates the message
- The translated audio is transmitted through another transmitter
- Listeners receive the translated language on the same channel
This is ideal for:
- International meetings
- Multilingual tours
- Conferences
| Transmitter | |
|---|---|
| Frequency Range | 2400 – 2480 MHz |
| Channels | 50 channels |
| Output Power | 10 mW |
| Power Supply | Built-in 1500mAh lithium battery |
| Working Time | Approximately 8 hours |
| Working Distance | 180 meters (open air) |
| Size | 86 × 50 × 19 mm |
| Weight | 60 g |
| Receiver | |
|---|---|
| Frequency Range | 2400 – 2480 MHz |
| Channels | 50 channels |
| Power Supply | Built-in 1000mAh lithium battery |
| Working Time | Approximately 18 hours |
| Size | 86 × 50 × 19 mm |
| Weight | 51 g |
Applications
Ideal Communication System for Various Environments
The TT109 wireless tour guide system is suitable for many communication environments.
Tourism & Guided Tours
Tour guides can communicate clearly with large groups without raising their voice.
Outdoor Travel Activities
Perfect for large group travel such as:
• Pilgrimage tours
• Cultural heritage visits
• Outdoor sightseeing tours
Training & Workshops
Trainers can provide instructions clearly to participants across large areas.
Multilingual Interpretation
Supports simultaneous translation during international meetings or events.
Educational Tours
Teachers and instructors can easily guide students during field trips or museum visits.
