Tour Guide Interpretation System

You are here:

Tour Guide Interpretation System

TT122
• 150m Wireless Communication Range
• 32-Device Charging & Storage Case
• 12-Hour Transmitter Battery Life
• 18-Hour Receiver Battery Life
• 36 Selectable Channels
• One-Touch Channel Synchronization
  • Overview
  • Key Features
  • Functions & Operation
  • Technical Specifications

Professional Wireless Interpretation System

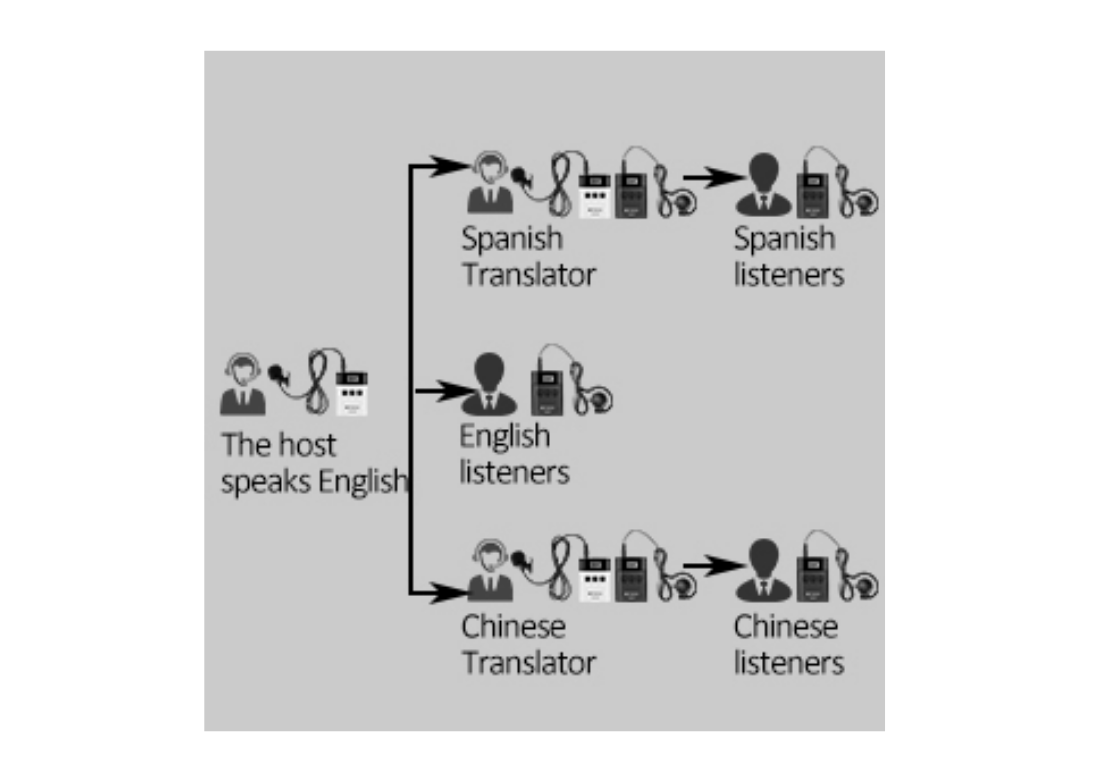

The TT122 Wireless Interpretation System is designed to provide clear and efficient multilingual communication in environments where participants speak different languages.

This system allows interpreters or speakers to transmit their voice wirelessly to multiple listeners using portable receivers. Each listener can hear the translation clearly through a lightweight headset.

The TT122 system is widely used in:

  • Church translation services
  • Multilingual conferences
  • Courtrooms
  • Classroom teaching
  • Guided tours
  • International meetings

Its portable design, reliable wireless transmission, and simple operation make it a practical solution for professional interpretation environments.

Products Features

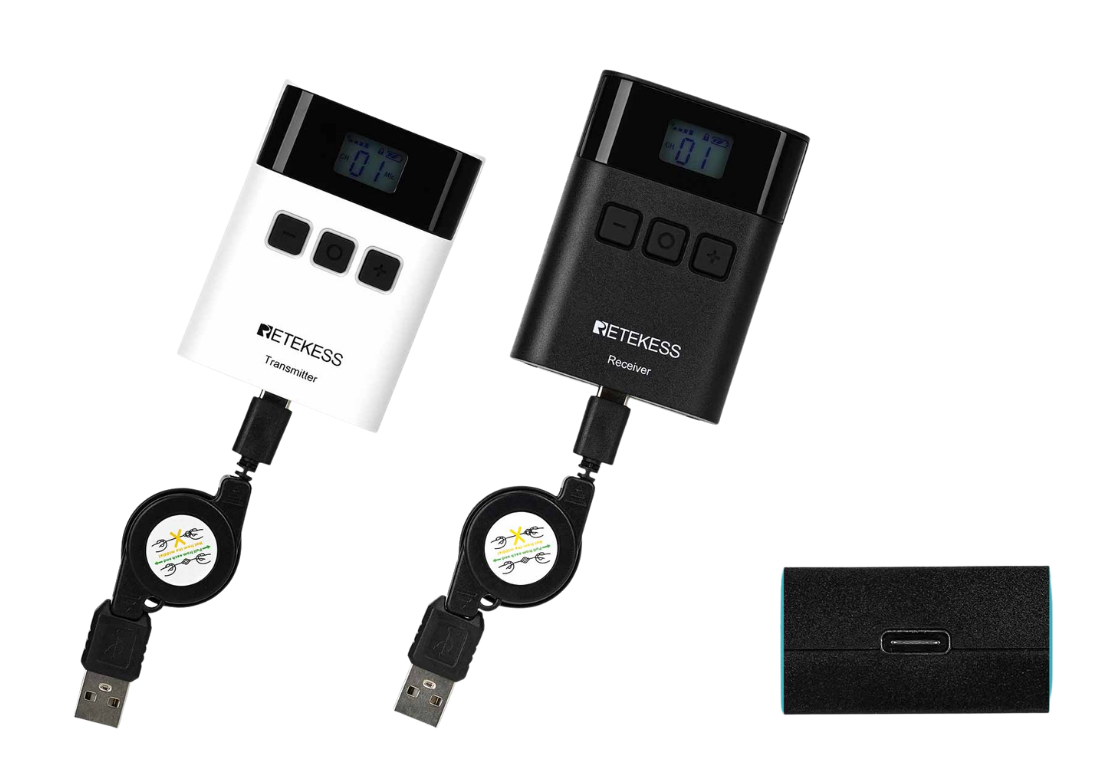

Long-Lasting Rechargeable Battery

The TT122 system features built-in rechargeable lithium batteries, ensuring reliable performance during long events.

Transmitter

  • Battery capacity: 1500mAh
  • Working time: up to 12 hours
  • Charging time: approximately 3 hours

Receiver

  • Battery capacity: 1500mAh
  • Working time: up to 18 hours
  • Charging time: approximately 3 hours

This long battery life allows the system to operate throughout conferences, lectures, or church services without interruption.

One-Touch Channel Synchronization

The TT122 supports automatic pairing and channel synchronization.

With a single button press, all receivers automatically synchronize with the transmitter channel, eliminating the need to manually configure each receiver.

This feature significantly reduces setup time before events and ensures reliable system operation.

Transmitter Mute Function

The TT122 transmitter includes a one-touch mute function.

When the mute button is activated:

  • Listeners temporarily stop hearing the interpreter's voice
  • Interpreters can pause translation during breaks
  • Background conversations remain private

This function is particularly useful during translation pauses or short interpreter breaks.

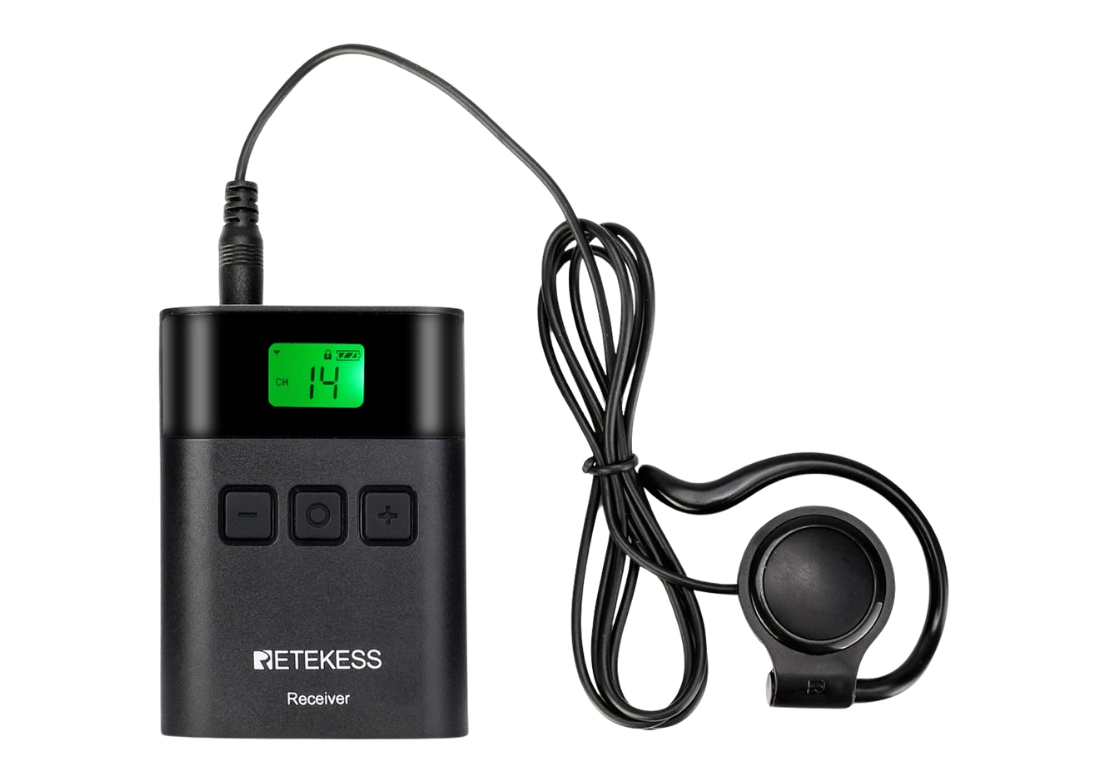

Adjustable Volume Levels

The wireless receiver provides 10 levels of volume adjustment, allowing listeners to customize audio levels according to their hearing preferences and surrounding noise conditions.

Even in crowded or noisy environments, participants can easily adjust the volume for clear listening.

AUX Audio Input Support

The TT122 transmitter includes a microphone / AUX audio input jack.

This allows connection to external audio sources such as:

  • Church PA system sound boards
  • Audio mixers
  • Media players
  • Audio playback devices

Note: The AUX and microphone share the same input jack, so background music and microphone input cannot be used simultaneously.

Durable Lavalier Microphone & Headset

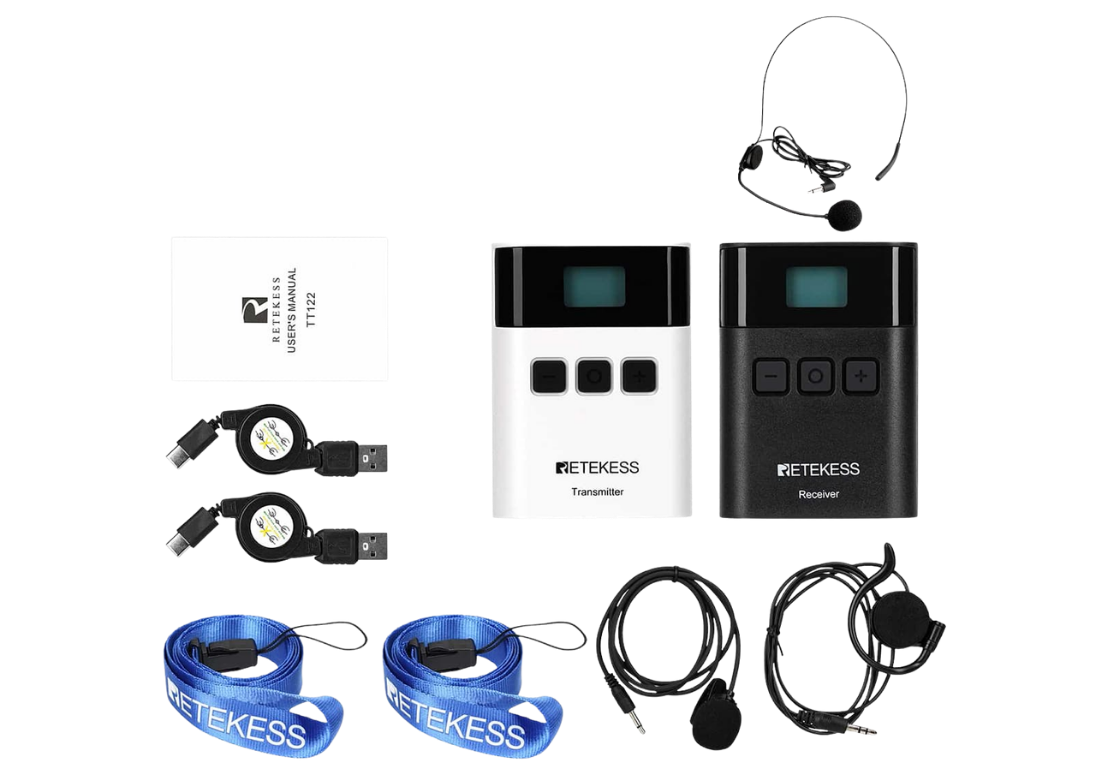

The system includes a high-quality lavalier microphone and single-ear headset.

Key benefits include:

  • Durable cable design resistant to wear
  • Comfortable for extended use
  • Clear voice capture
  • Secure attachment to clothing

The single-ear headset allows users to listen clearly while remaining aware of their surroundings.

Left ear headsets are included by default, while right ear headsets can be requested when ordering.

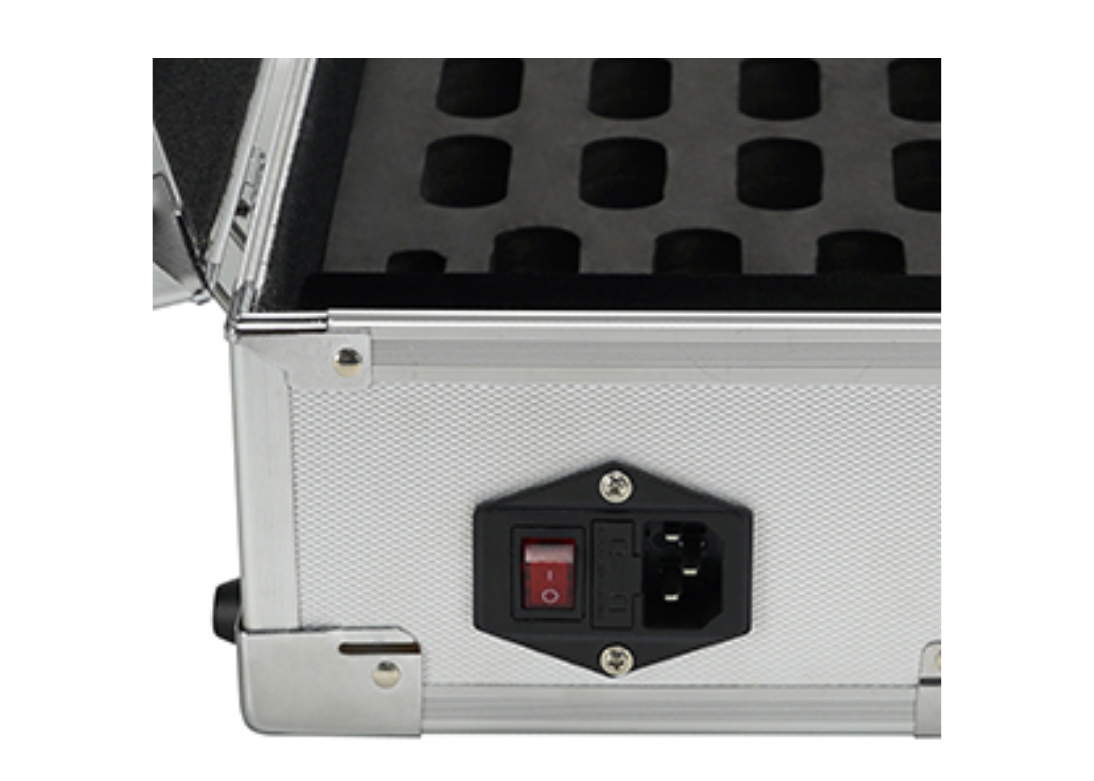

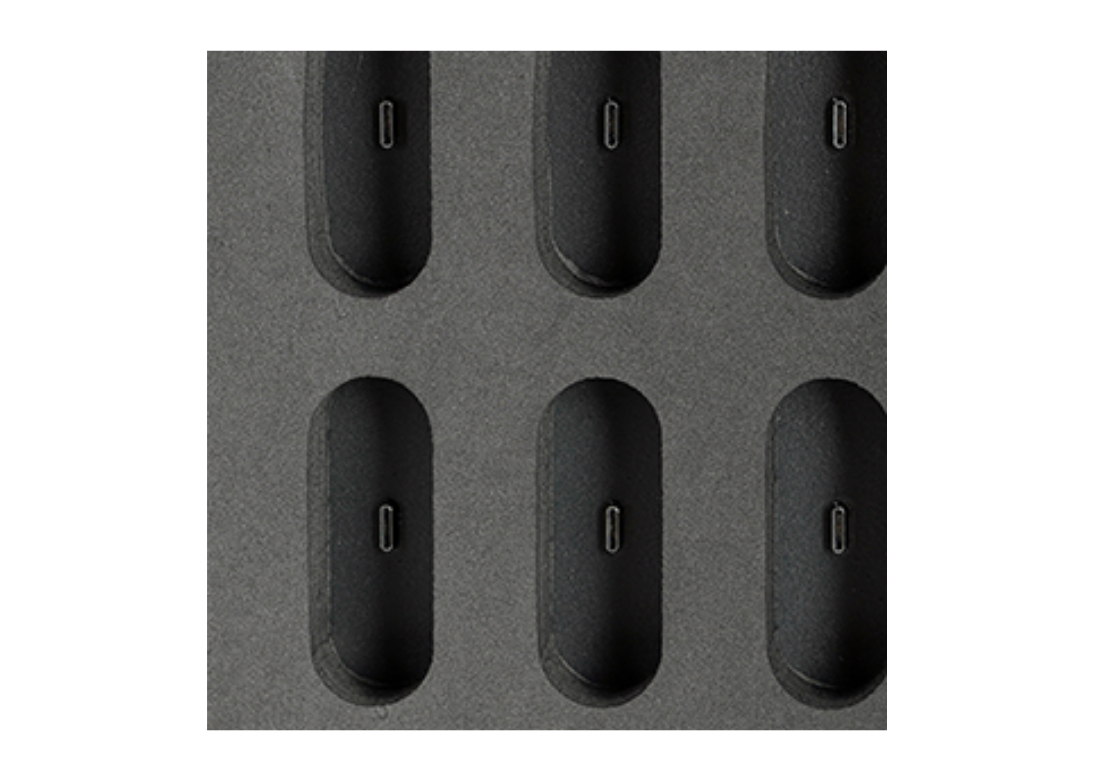

32-Port Charging Case

The TT122 system includes a multi-device charging and storage case designed for efficient device management.

The charging case can simultaneously charge:

  • 2 transmitters
  • 30 receivers

All devices can be charged using one power connection, reducing cable clutter and improving safety.

Charging Case Benefits

  • Charge up to 32 devices simultaneously
  • Organized device storage
  • Faster device preparation before events
  • Safe and portable transport

The charging case also serves as a protective storage solution for devices and accessories during travel.

Transmitter

Frequency Range2400 – 2480 MHz
Channels36 channels
Output Power10 mW
BatteryBuilt-in 1500mAh lithium battery
Working TimeApproximately 12 hours
Charging TimeApproximately 3 hours
Charging Voltage5V
Wireless DistanceUp to 150 meters (open space)
Size53.5 × 19.2 × 74.2 mm
Weight70 g

Receiver

Frequency Range2400 – 2480 MHz
Channels36 channels
BatteryBuilt-in 1500mAh lithium battery
Working TimeApproximately 18 hours
Charging TimeApproximately 3 hours
Charging Voltage5V
Size53.5 × 19.2 × 74.2 mm
Weight70 g

Charging Case

Input Voltage100 – 230 VAC
Frequency47 – 63 Hz
AC Current1.64A / 115VAC
0.93A / 230VAC
Output per Slot
Voltage5V
Current500mA
Power2.5W
Number of Charging Ports32
Working Temperature−20°C to 60°C
WeightApproximately 3.4 kg
Case Size484 × 305 × 133 mm

Applications

Ideal for Multilingual Communication Environments

The TT122 interpretation system is suitable for many professional environments where clear communication across languages is required.

Church Translation Services

Allows interpreters to deliver real-time translations during sermons or religious gatherings.

Multilingual Conferences

Participants from different countries can easily listen to simultaneous interpretation.

Classroom Teaching

Ideal for international students or bilingual education environments.

Courtrooms

Ensures accurate and confidential interpretation during legal proceedings.

International Meetings

Provides seamless communication for global teams and organizations.
