Professional Environment for Simultaneous Interpretation

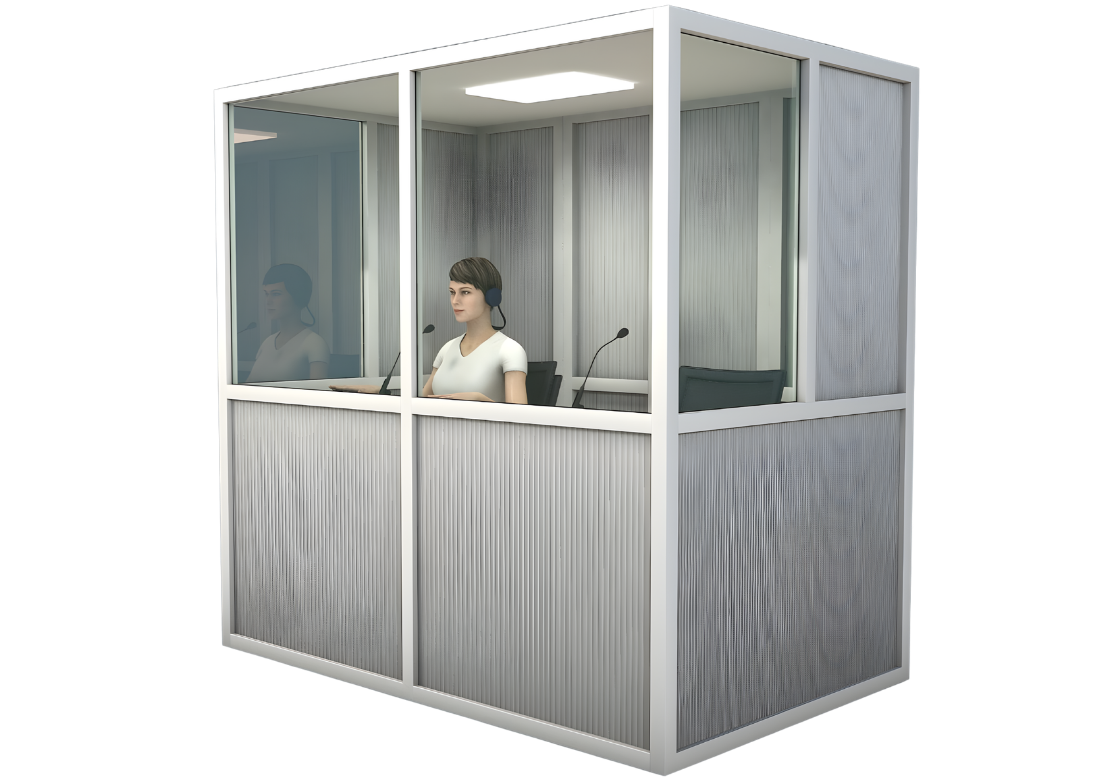

Simultaneous interpretation booths are essential for international conferences where multiple languages are translated in real time. The JW-IB2L01 ISO Interpretation Booth provides interpreters with a dedicated workspace that isolates external noise while allowing clear communication with conference participants through interpretation systems.
The booth is designed to meet the ISO 4043 standard, which specifies requirements for mobile interpreter booths used in professional conference environments. This ensures interpreters can work in an environment that minimizes acoustic interference while maintaining visibility of speakers and presentation screens.
Its modular structure allows the booth to be assembled or dismantled quickly, making it suitable for temporary conference installations, exhibitions, and rental applications. Despite its portability, the booth provides the stability, acoustic insulation, and working comfort required for professional interpretation.
With integrated cable management, silent ventilation, and spacious work surfaces, interpreters can comfortably operate interpretation consoles, microphones, and headsets during long conference sessions.
Products Features
ISO 4043 Standard Compliance
The JW-IB2L01 booth is designed according to ISO 4043 standards, ensuring it meets professional requirements for mobile interpretation booths used in international conferences and events.
This standard defines acoustic performance, interpreter comfort, ventilation, and visibility requirements.

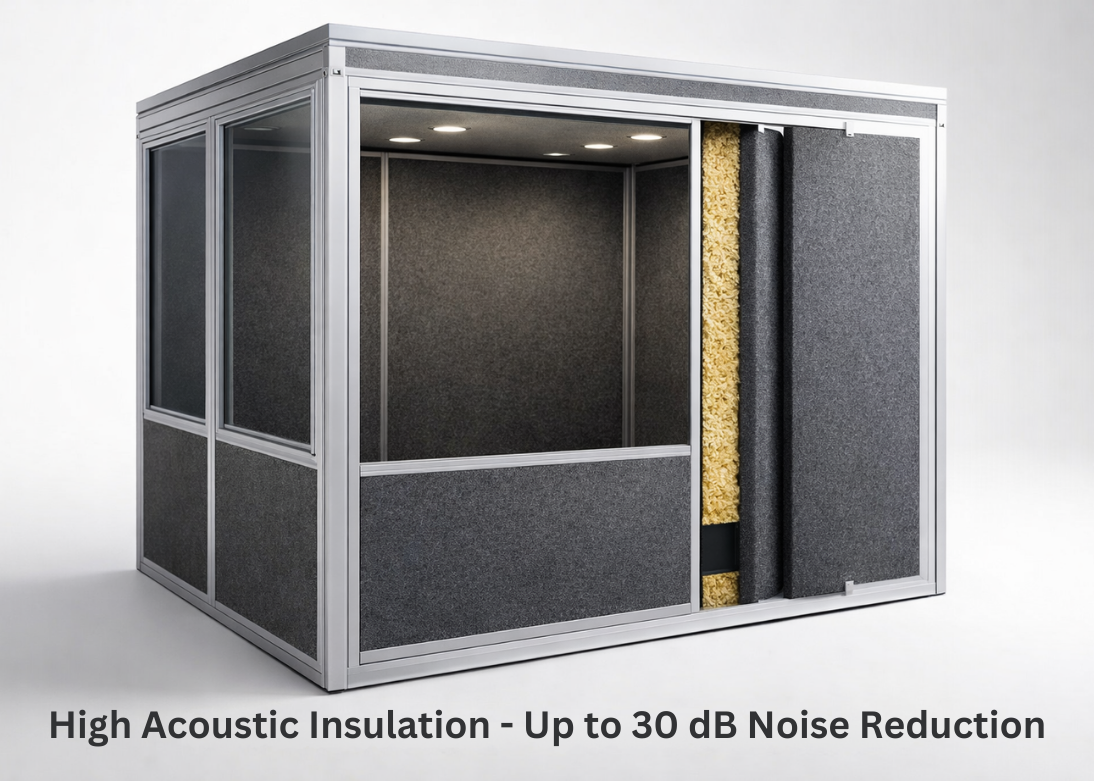

Excellent Sound Insulation
The booth provides sound isolation of at least 30 dB, allowing interpreters to clearly hear the original speaker without external noise interference.
This is essential in busy conference environments where multiple interpretation channels may operate simultaneously.

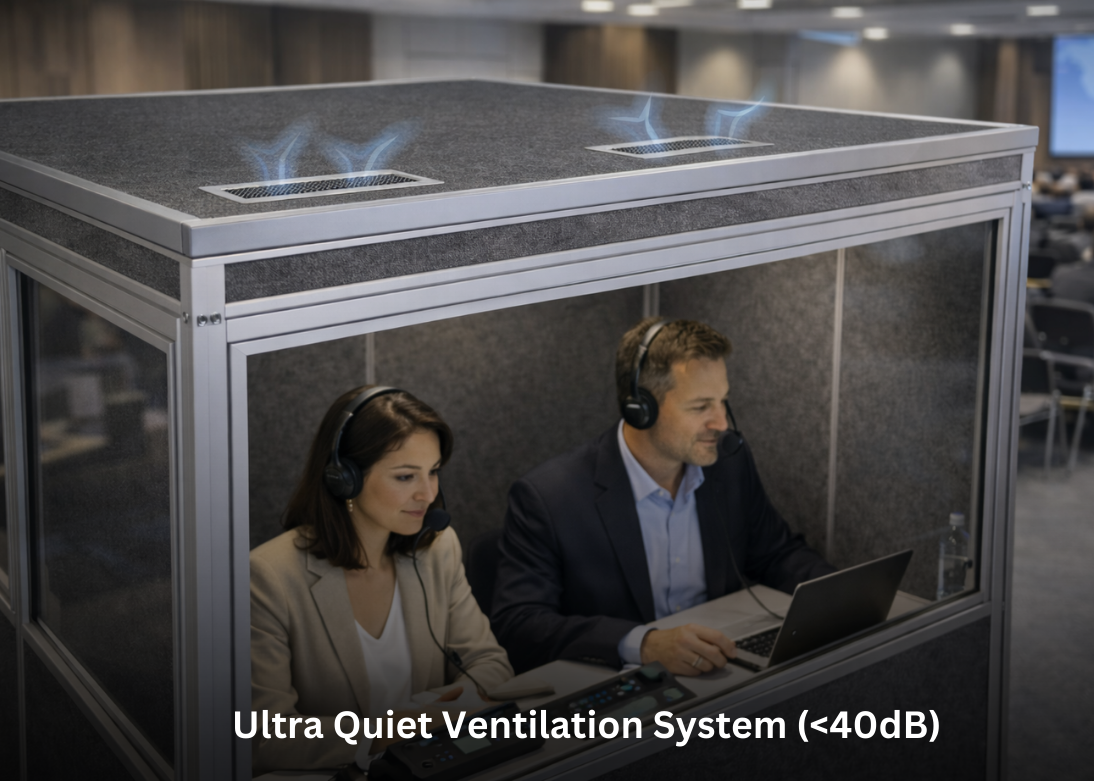

Silent Ventilation System
A built-in roof ventilation system ensures continuous airflow inside the booth while maintaining extremely low noise levels.
- Ventilation noise level: below 40 dB
- Maintains comfortable working conditions during long sessions

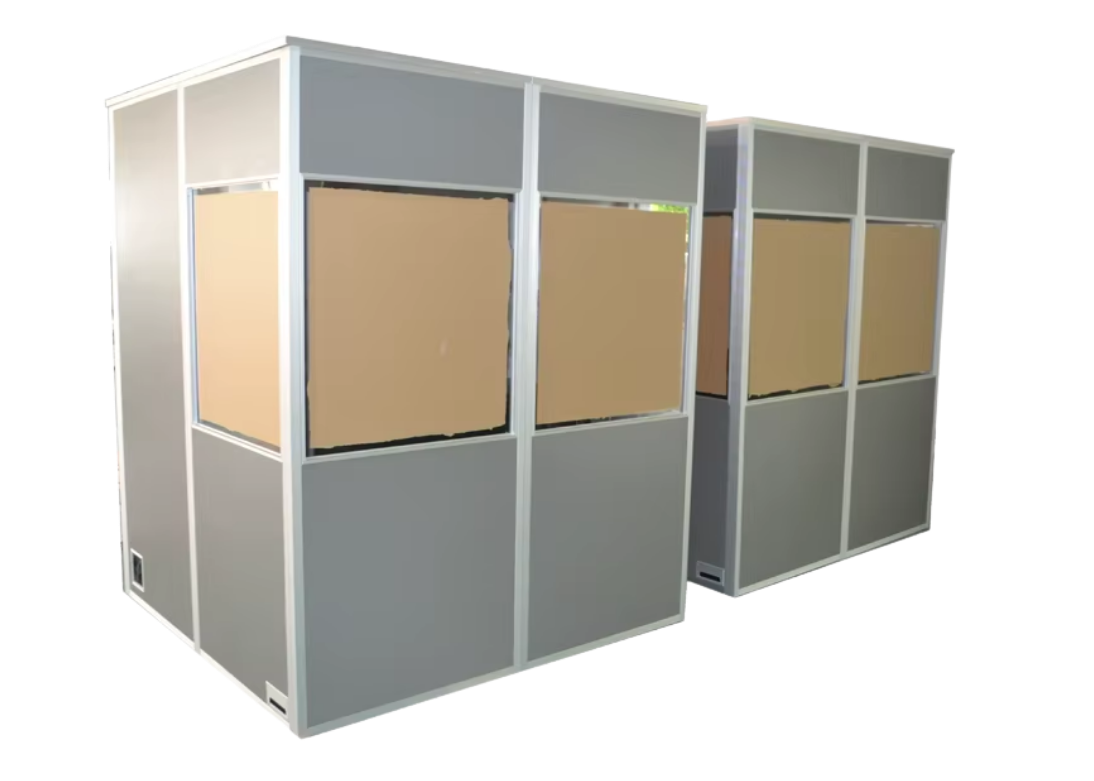

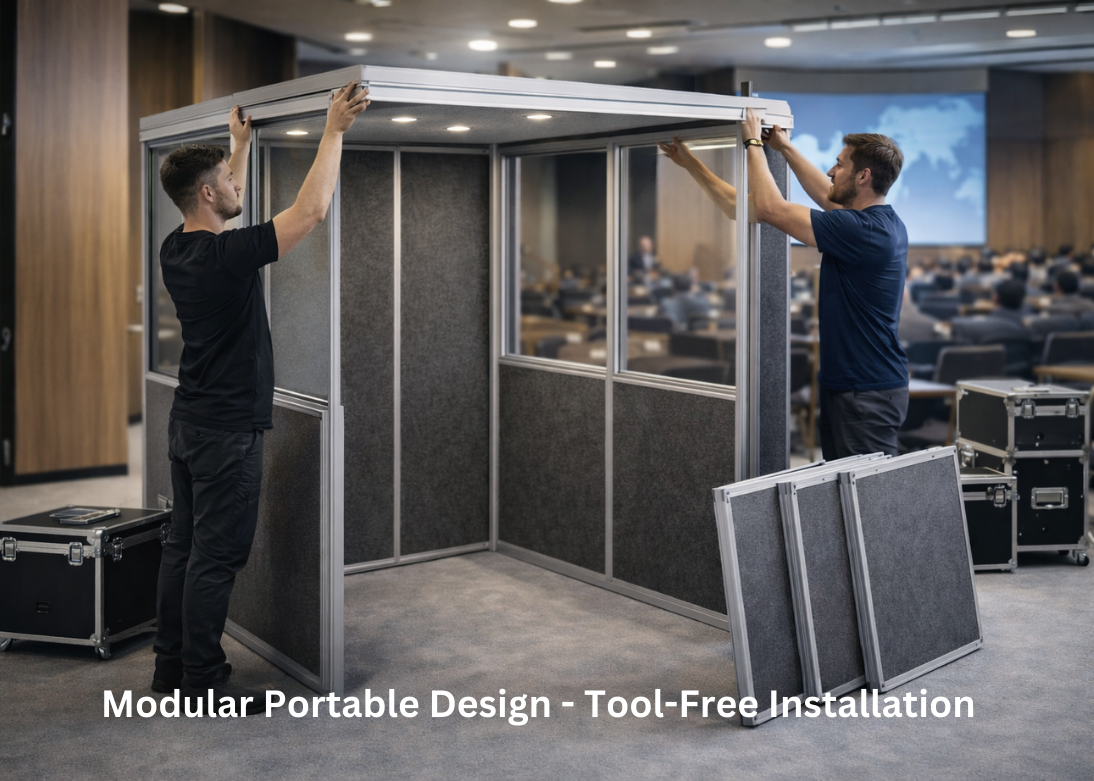

Modular & Portable Design
The booth consists of 11 modular panels, allowing easy transport and assembly.
Key advantages:
- No tools required for installation
- Assembly by 1–2 persons
- Quick setup for temporary conference venues
- Suitable for rental operations

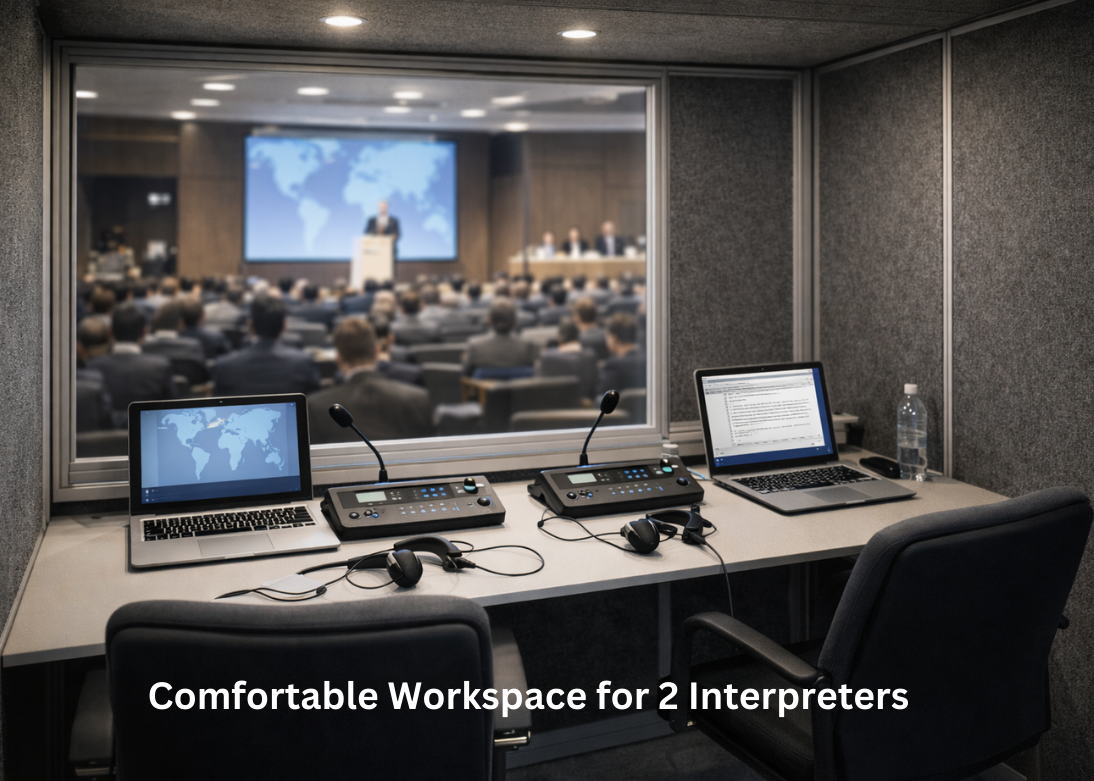

Spacious Working Area
The booth is designed to comfortably accommodate interpreters and their equipment.
Work surface features:
- Large table space for interpretation consoles
- Microphone and headset setup
- Document and laptop placement
This allows interpreters to work efficiently during long conference sessions.

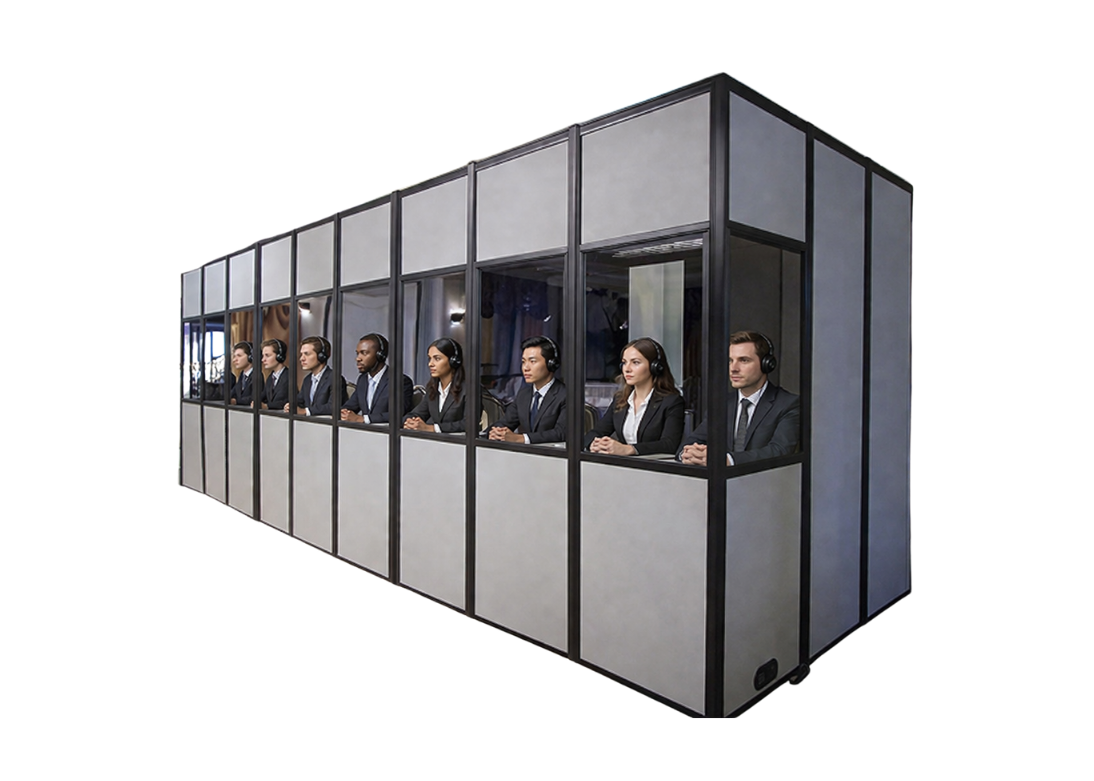

Expandable Configuration

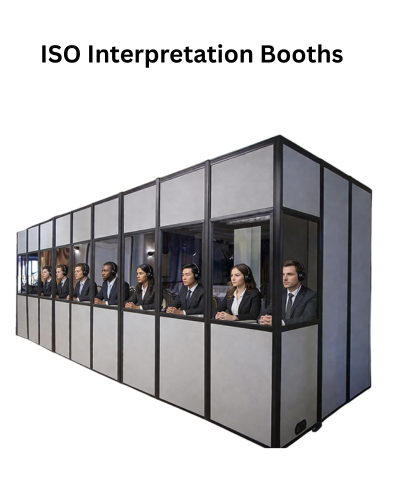

While the standard configuration supports two interpreters, optional extension panels allow the booth to be expanded to support up to four interpreters when required.
This flexibility makes it suitable for different conference setups.
Durable Structural Materials
The interpretation booth is built using a combination of professional materials designed for durability, portability, and acoustic performance.
Materials include:
- Aluminum alloy 6082-T6 frame
- High-density plywood acoustic panels
- Acrylic viewing windows
- Fire-retardant surface coating
These materials ensure long-term reliability while maintaining lightweight portability.
Large Acrylic Viewing Windows
The booth features large anti-scratch acrylic windows, providing interpreters with a clear view of speakers, presentation screens, and conference activities.
The window size provides sufficient visibility while maintaining acoustic isolation.
Ergonomic Work Surface
The integrated work surface provides adequate space for interpretation consoles and supporting equipment.
The dimensions allow interpreters to comfortably operate equipment during extended conference sessions.
Cable Management System
Built-in cable ducts allow interpretation equipment cables to pass through the booth while maintaining acoustic sealing.
This keeps cables organized and prevents interference with interpreter workspaces.
| Booth Specifications | |
|---|---|
| Model | JW-IB2L01 |
| Booth Type | Portable simultaneous interpretation booth |
| Standard Capacity | 2 interpreters (expandable to 4) |
| Standard Size | 1600 × 1600 × 2000 mm |
| Weight | Approx. 130 kg |
| Panel Configuration | 11 panels |
| Sound Insulation | ≥ 30 dB |
| Ventilation Noise Level | < 40 dB |
| Materials | |
| Frame | Aluminum Alloy 6082-T6 |
| Panels | High-density plywood with fire-retardant coating |
| Windows | Acrylic |
| Available Colors | Silver, Blue, Yellow, Black |
| Compliance & Certification | |
| ISO Standard | ISO 4043 |
| Other Certifications | CE, RoHS, TUV |
| Window & Work Surface | |
|---|---|
| Window Size | Approx. 700 × 900 mm |
| Window Material | Acrylic (6 mm thickness, anti-scratch) |
| Work Surface Size | Approx. 152 cm × 50 cm × 73 cm |
| Cable Passage Diameter | 5 cm |
Applications

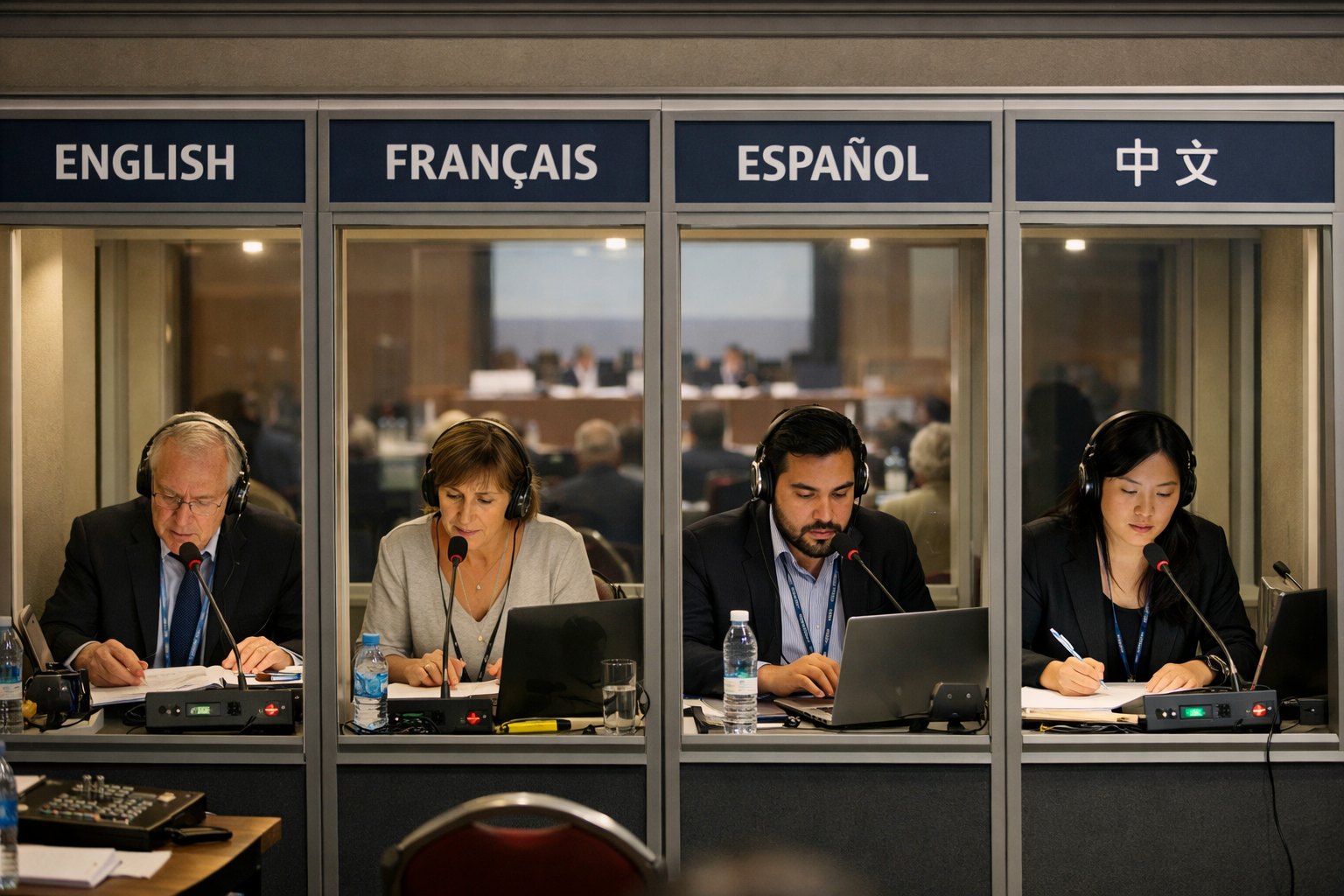

Used for International Conferences & Multilingual Events
ISO interpretation booths are widely used in events where simultaneous interpretation is required for multiple languages.

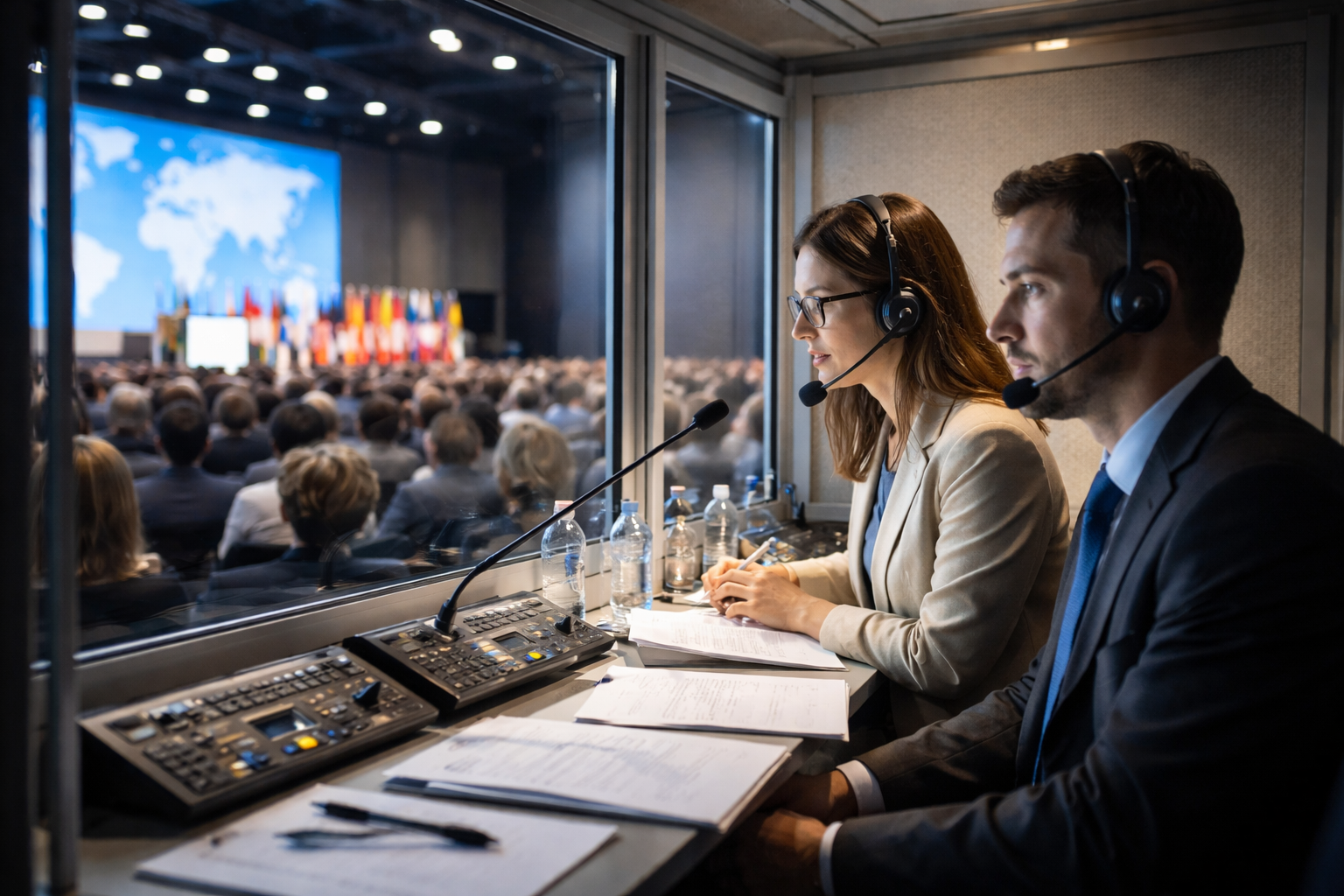

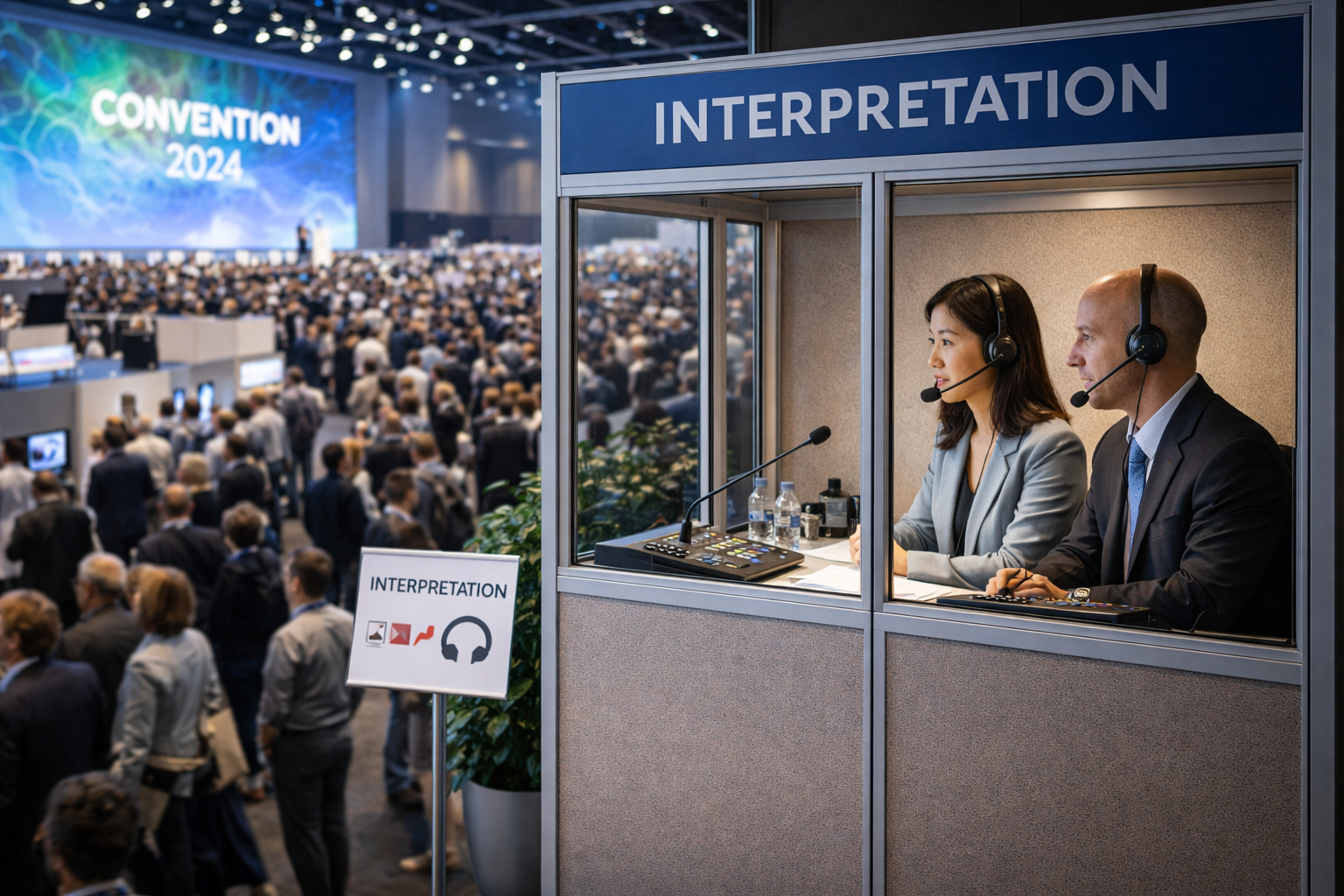

International Conferences
Large conferences with participants from different countries require interpretation booths to support real-time translation.
Government & Diplomatic Meetings
Government summits and diplomatic meetings enable communication between delegates speaking different languages.

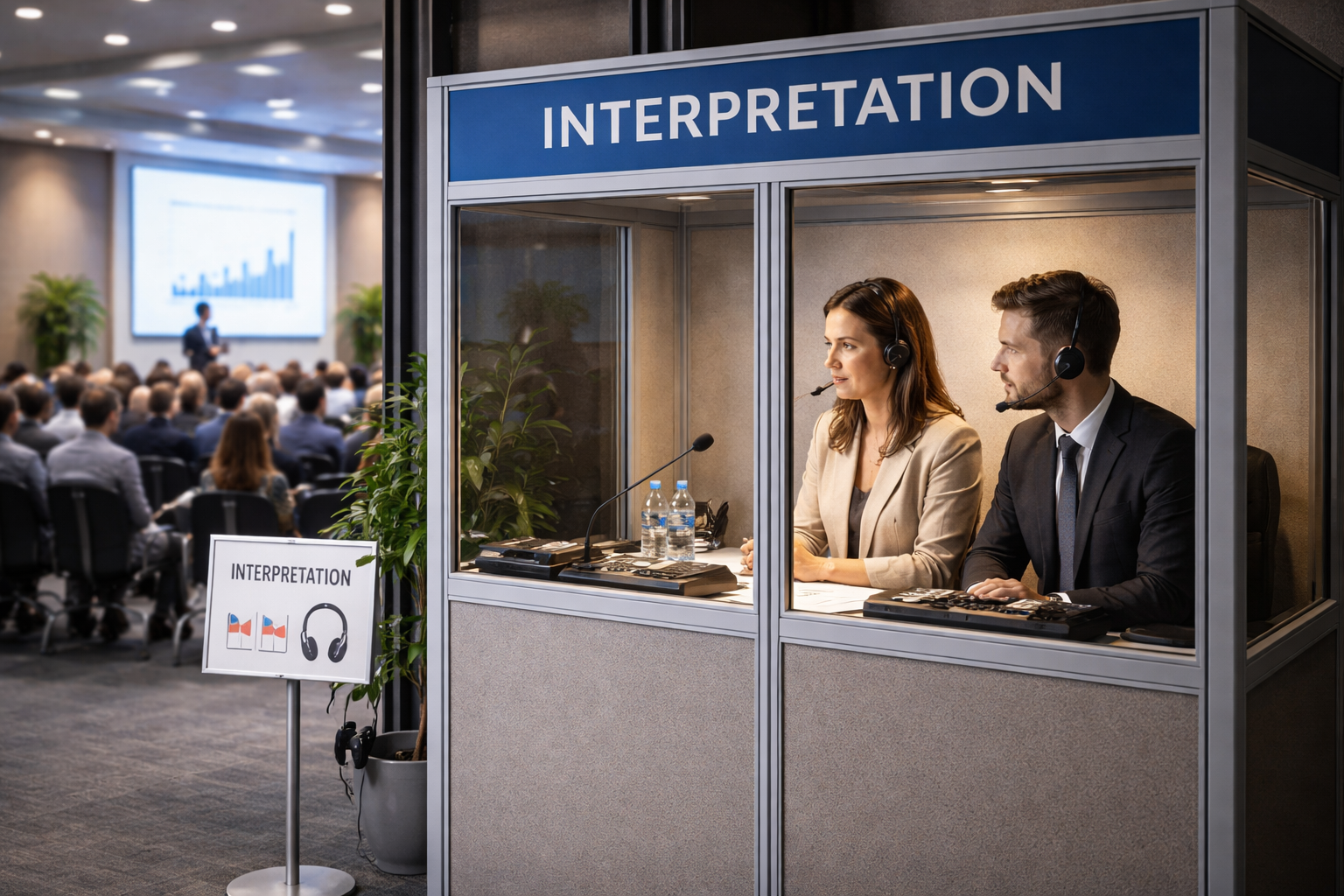

Corporate Conferences
Multinational companies use interpretation booths during global meetings and corporate events.
Exhibitions & Trade Shows
Trade exhibitions often require interpretation services for presentations and demonstrations.
Academic Conferences
Universities and research institutions use interpretation booths during international seminars.
Religious & Cultural Events
Large cultural gatherings may require interpretation booths to support multilingual audiences.
Need High-Quality Interpretation Booths?
Our interpretation booths provide excellent sound insulation, ergonomic design, and compliance with international standards ensuring clear and distraction-free interpretation
