TT106S Tourism Earhook Receiver Wireless Tour Guide System New Upgrade
The TT106S Wireless Tour Guide System is a professional wireless communication solution designed for tour guides, factory visits, training sessions, conferences, and educational tours.
It features a wireless ear-hook receiver that removes tangled headphone wires and simplifies device management.
With crystal-clear audio transmission, long battery life, and communication distance of up to 200 meters, the system ensures every participant clearly hears the guide.
Its lightweight ergonomic receiver, powerful transmitter, and one-button operation make TT106S ideal for professional group communication.
Key Highlights
- Wireless ear-hook receiver design
- Up to 200m / 656ft transmission range
- 9999 selectable channels
- Ultra-lightweight receiver (18g)
- 50-hour receiver battery life
- 23-hour transmitter battery life
- One-touch pairing and mute operation
- 20-minute auto shutdown without signal
Products Features

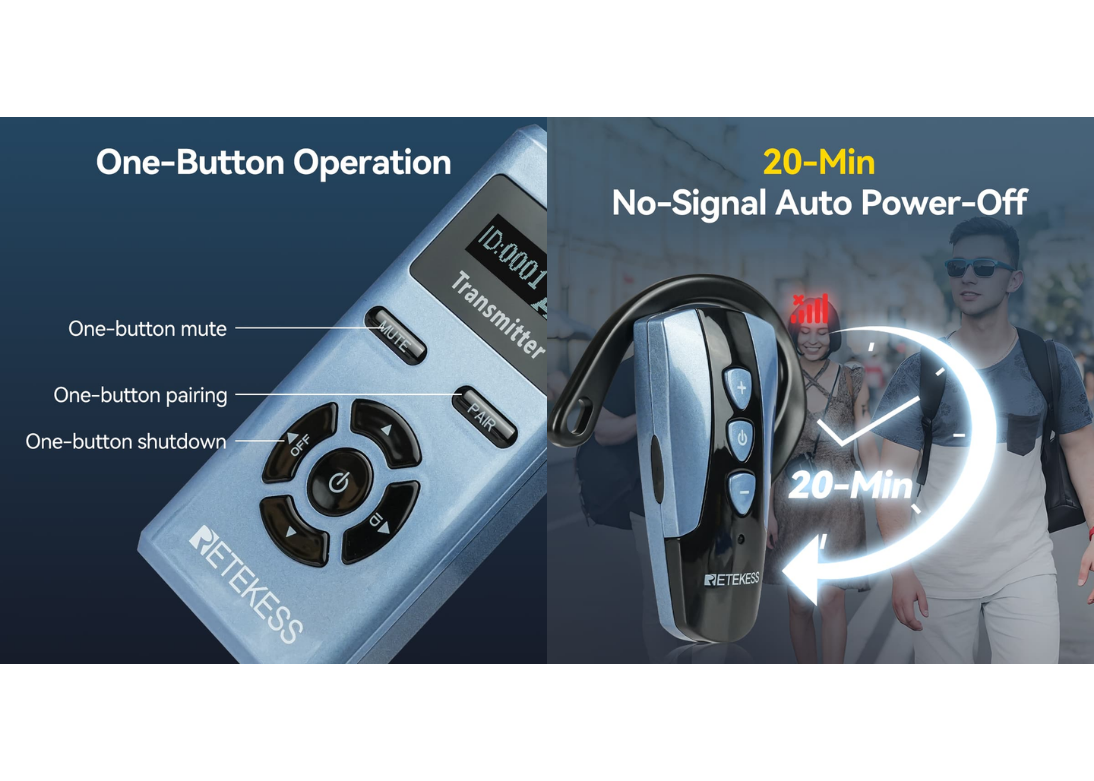

Simple One-Button Operation
The TT106S is extremely easy to operate, making it suitable even for first-time users.
Main controls include:
- One-button pairing between transmitter and receivers
- One-button mute for quick audio control
- Long press to power off all receivers simultaneously
- Automatic channel memory
Once paired, the system remembers the channel and is ready to use immediately after powering on.
Volume Adjustment

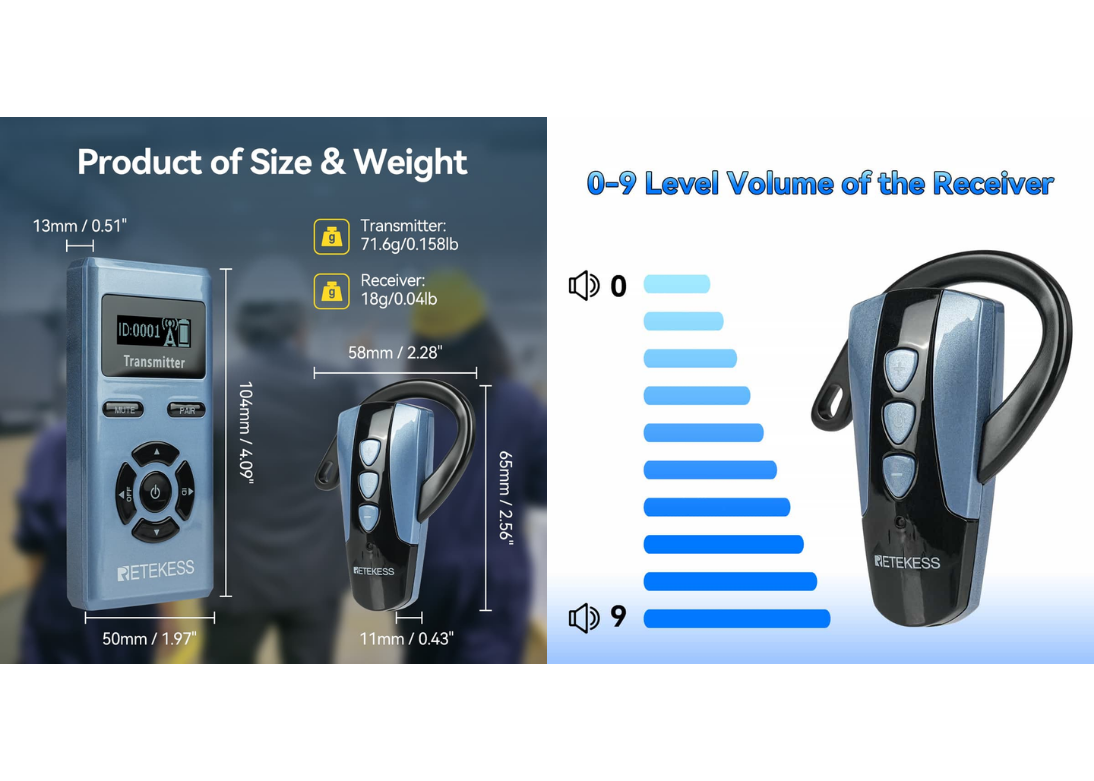

The receiver includes 9-level volume adjustment, allowing users to set the sound level according to their comfort.
This ensures:
- Clear audio in noisy environments
- Comfortable listening for different hearing needs
Expandable Receiver System
The TT106S system allows easy expansion.
- Add unlimited receivers
- One transmitter supports many listeners
- Ideal for large tour groups or events

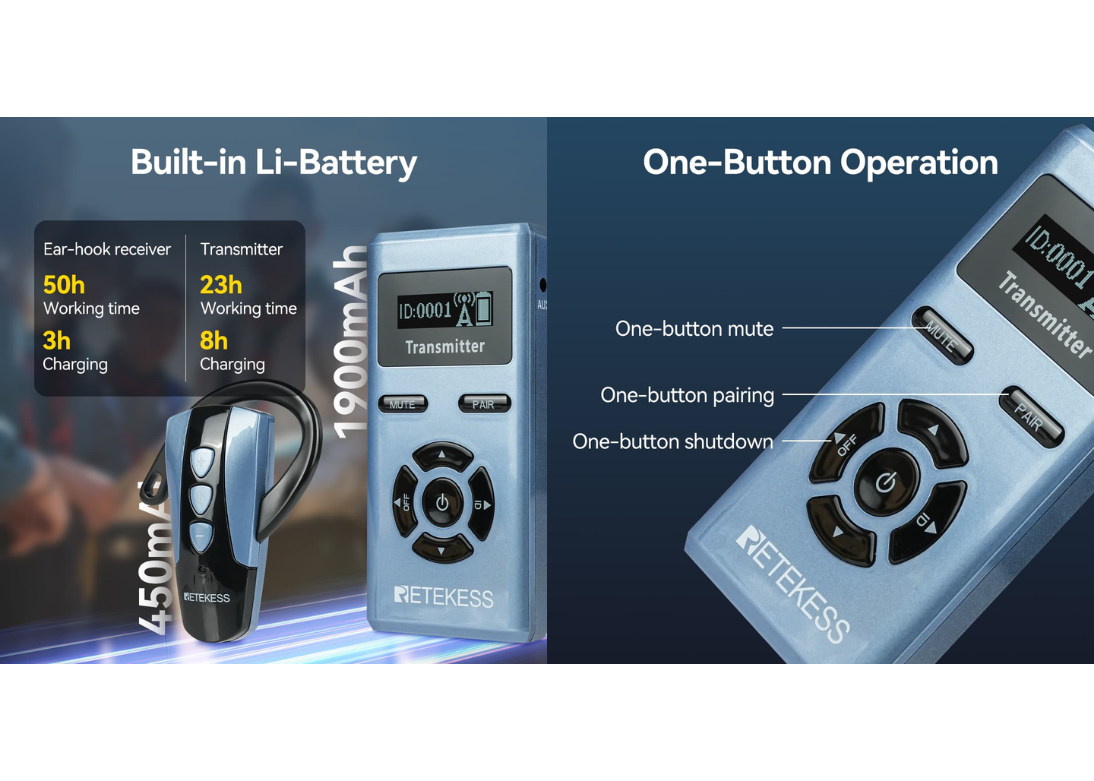

Long Battery Life
The TT106S system is designed for all-day operation without interruption.
Receiver
- Working time: up to 50 hours
- Charging time: approximately 3 hours
Transmitter
- Working time: up to 23 hours
- Charging time: approximately 8 hours
The receiver automatically powers off after 20 minutes without signal, helping conserve battery life.
Crystal-Clear Audio Quality
The system delivers clear and stable audio transmission, ensuring every listener can hear the guide clearly.
- Signal-to-noise ratio ≥80dB
- Reduces background noise and distortion
- High-quality voice transmission
The transmitter supports:
- Microphone input
- AUX input (MP3 / phone audio)
This allows guides to speak live or play recorded audio and background music.
Stable Signal & Wide Range
The TT106S operates on a 2.4GHz wireless frequency, providing reliable communication in large spaces.
- Transmission distance up to 200 meters (656 ft)
- Suitable for outdoor attractions and large venues
- 9999 selectable channels
Multiple groups can use the system simultaneously without interference or crosstalk.

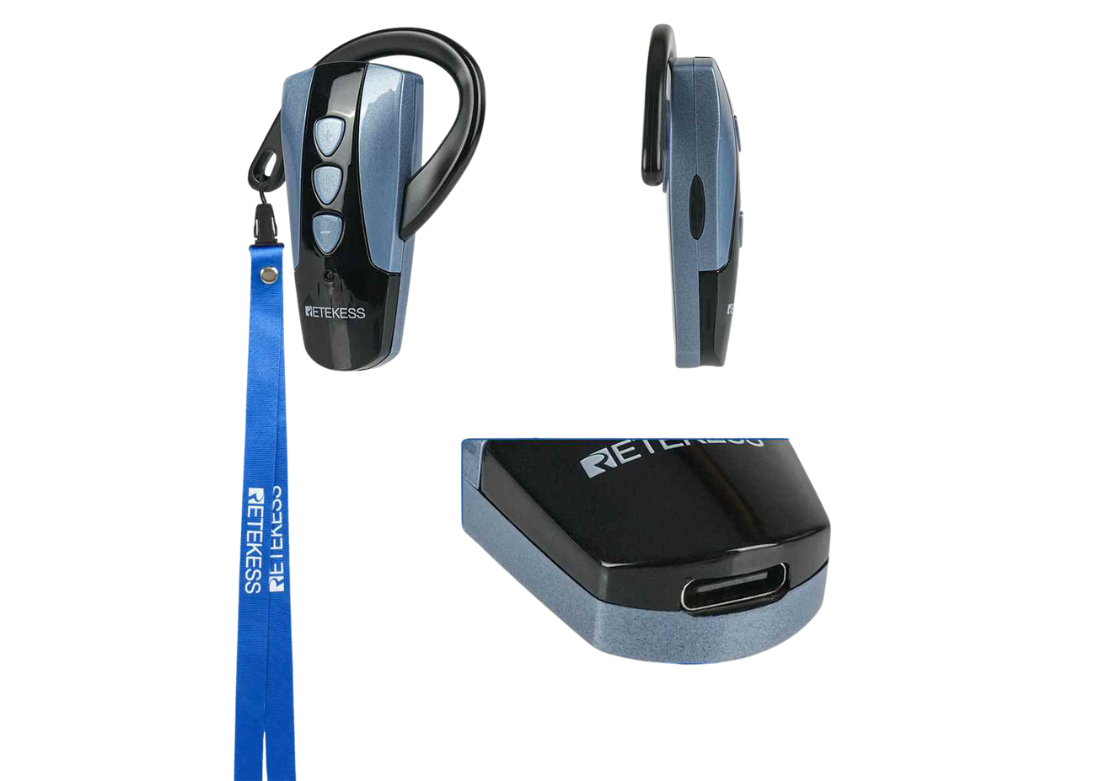

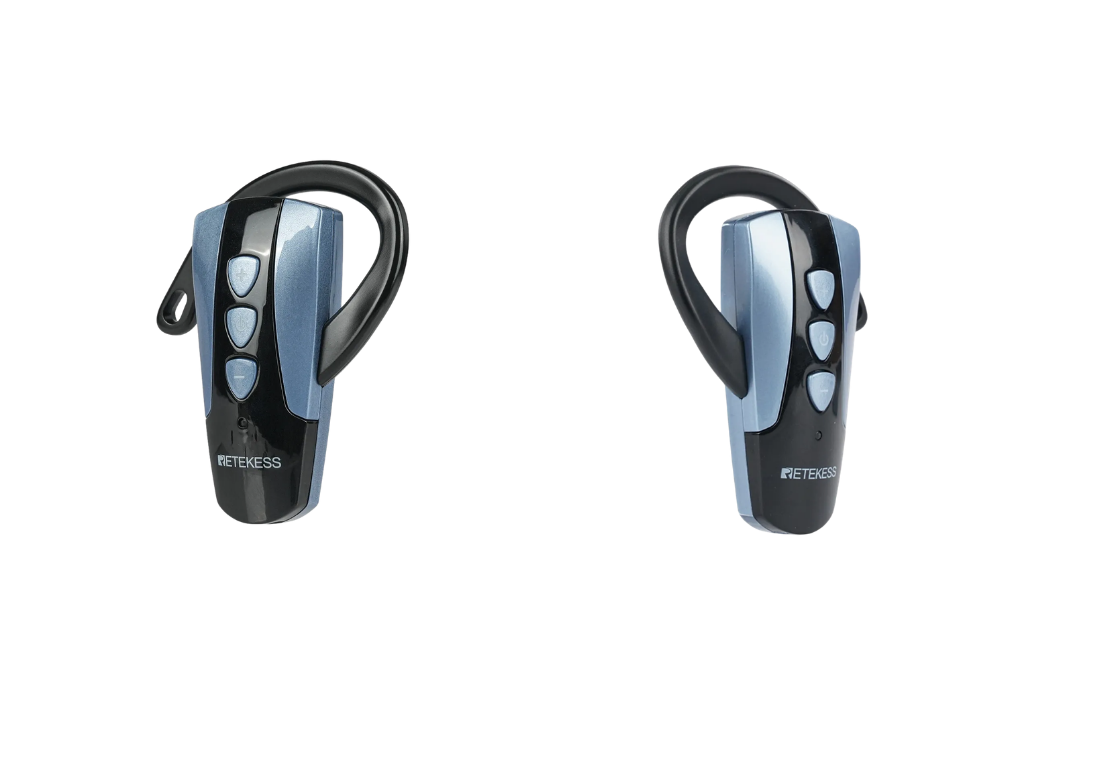

Comfortable & Lightweight Design
The TT106S receiver is designed for maximum comfort during long tours.
- Soft silicone ear-hook design
- Ultra-lightweight receiver (18g)
- Secure and comfortable fit
Users can wear the receiver for long hours without discomfort.
Transmitter
| Operating Frequency Range | 2.4 – 2.485 GHz |
| Operating Voltage | DC 3.7V |
| Transmit Power | ≤100mW |
| Signal-to-Noise Ratio | ≥80dB |
| Battery Specification | 3.7V / 1900mAh Lithium Battery |
| Usage Time | Up to 23 hours |
| Operating Distance | 200m / 656ft (open space) |
| Charging Interface | Type-C |
| Charging Voltage | DC 5V |
| Charging Current | 300mA |
| Operating Current | ≤160mA |
| Charging Time | Approximately 8 hours |
Receiver
| Operating Frequency Range | 2.4 – 2.485 GHz |
| Operating Voltage | DC 3.7V |
| Signal-to-Noise Ratio | ≥80dB |
| Battery Specification | 3.7V / 450mAh Lithium Battery |
| Usage Time | Approximately 50 hours |
| Operating Distance | 200m / 656ft (open space) |
| Charging Interface | Type-C |
| Charging Voltage | DC 5V |
| Charging Current | 200mA |
| Operating Current | ≤15mA |
| Charging Time | Approximately 3 hours |
Applications
Tourism & Travel
Tour guides can communicate clearly with large tourist groups even in crowded locations.
Factory Visits
Visitors can hear explanations clearly despite machinery noise.
Schools & Educational Tours
Ideal for student groups, campus tours, and training programs.
Conferences & Events
Useful for presentations, seminars, and multilingual communication.
Museums & Exhibitions
Visitors can receive clear audio explanations without disturbing others.
