Digital 64 Channels Interpreter Desk Pro with IC Card
Fully compliant with ISO 20109, 2603, and 4043 Braille buttons and audible cues for visually impaired interpreters
- Overview
- Functions
- Diagram

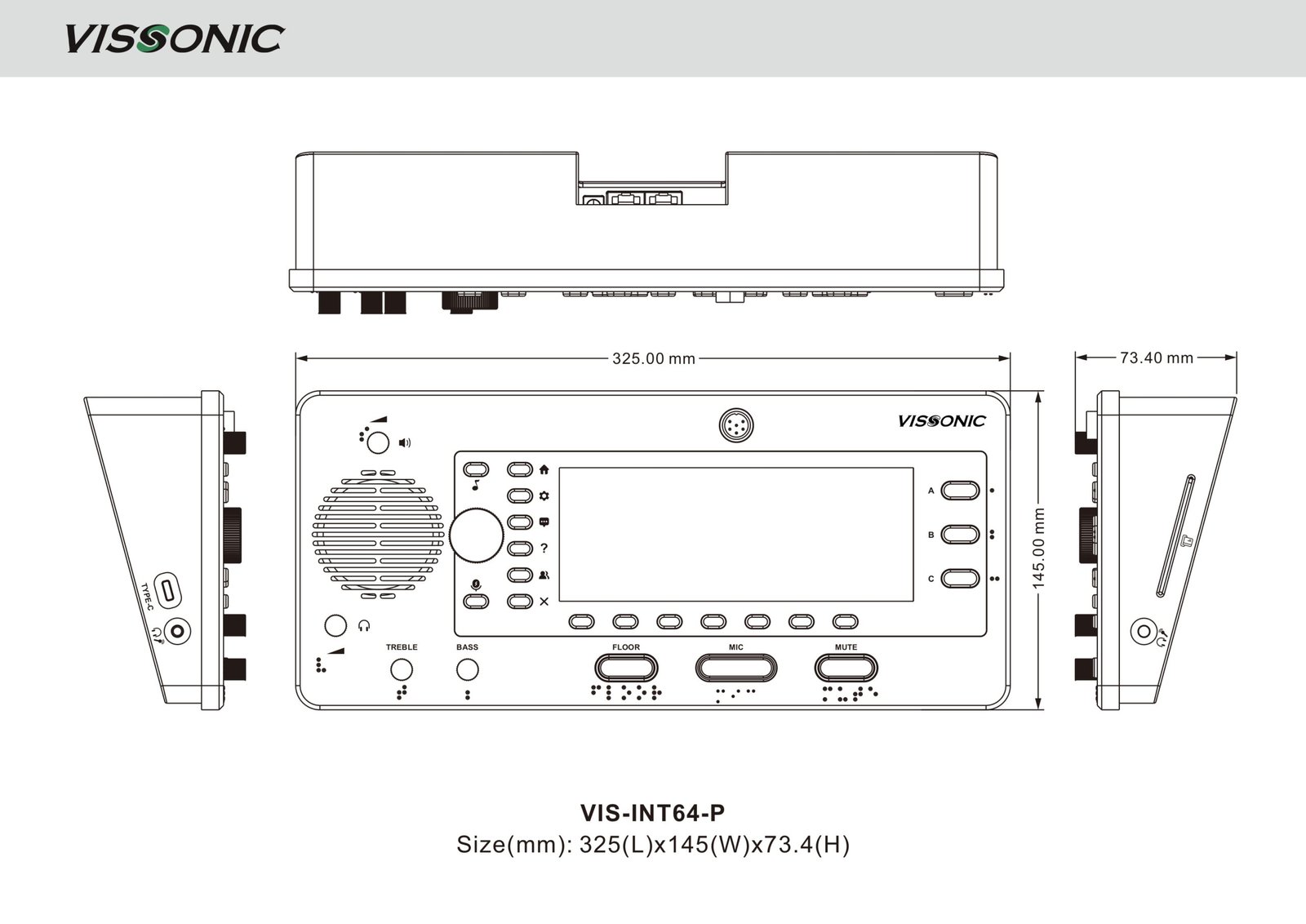

- Mechanical Drawing

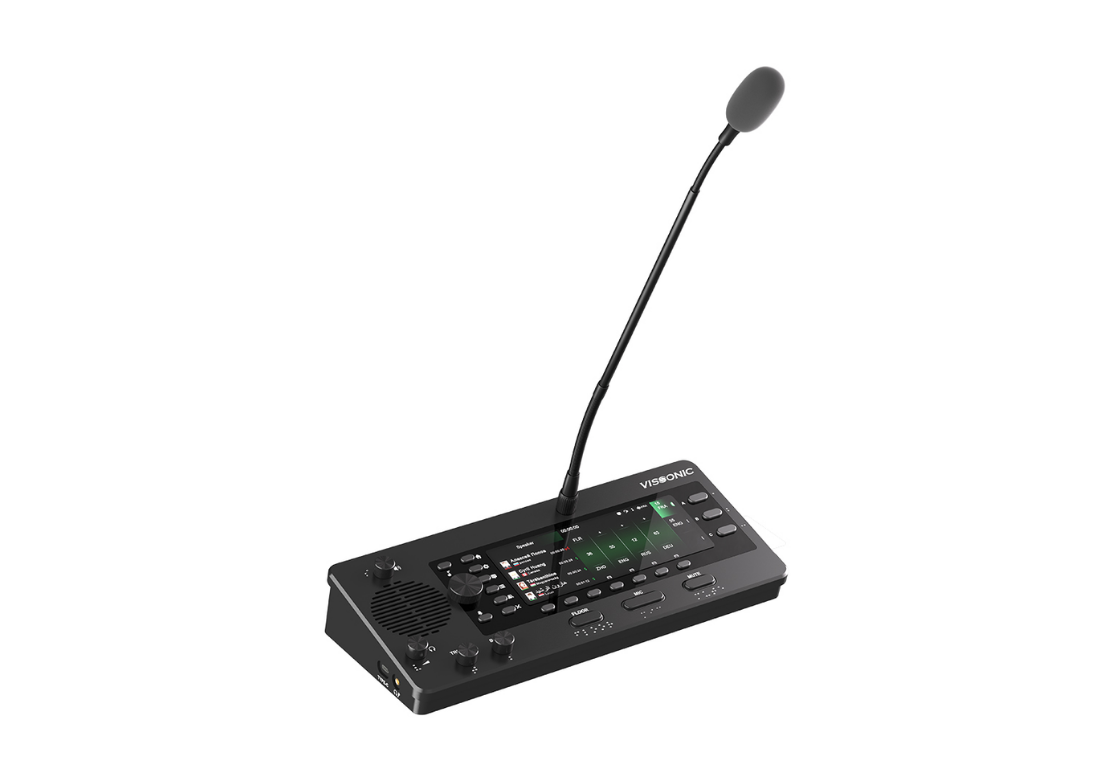

VIS-INT64-P is a translation console with up to 64 channels. It offers a 6.8" TFT LCD screen, built-in speakers, and detachable microphone and headphone/microphone jack, meeting the translation needs of multilingual venues. Its digital design minimizes background noise, distortion, and crosstalk. Intuitive operation allows for a single glance for the entire interpreting process. It fully complies with ISO 20109, 2603, and 4043.
- 1000M network digital transmission
- Supports daisy-chained connections, built-in data refreshing, and cable redundancy
- Each system supports up to 1000 translation units
- Braille buttons and audible cues for visually impaired interpreters
- Intuitive color display and button layout
- Durable all-metal aluminum alloy casing, highly resistant to external RF interference
- TYPE-C connectivity for audio input or output recording
- Seven input channels plus original sound channels
- A/B/C output channels
- Compliant with ISO standards 20109, 2603, and 4043
- Supports connection to VISSONIC paperless conference systems, audio playback, HDMI video output
- Digital audio technology with built-in high-speed DSP processing
- Supports 48 kHz audio sampling rate on all 64 channels, with a frequency response from 30 Hz to 20 kHz
- Detachable microphone design
- Separate volume control for speakers and headphone jacks
Related Products:
Digital 64 Channels Interpreter Desk Pro with IC Card
Headphone for Delegates

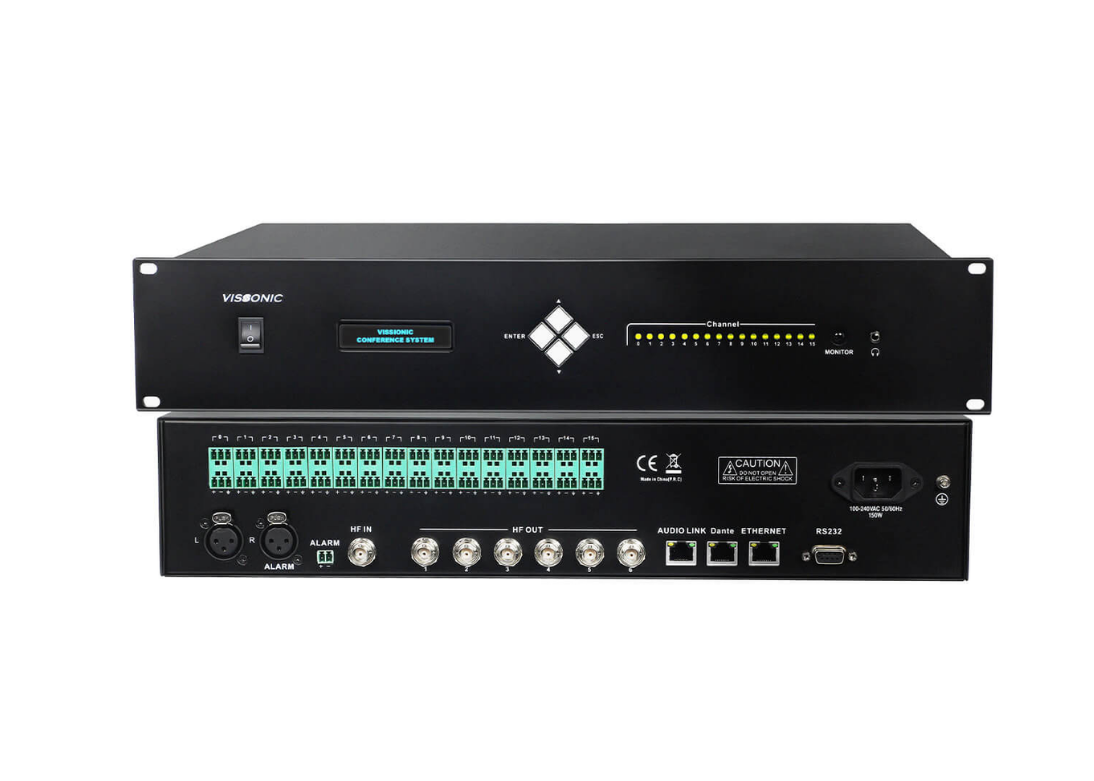

Series Digital Infrared Transmitter

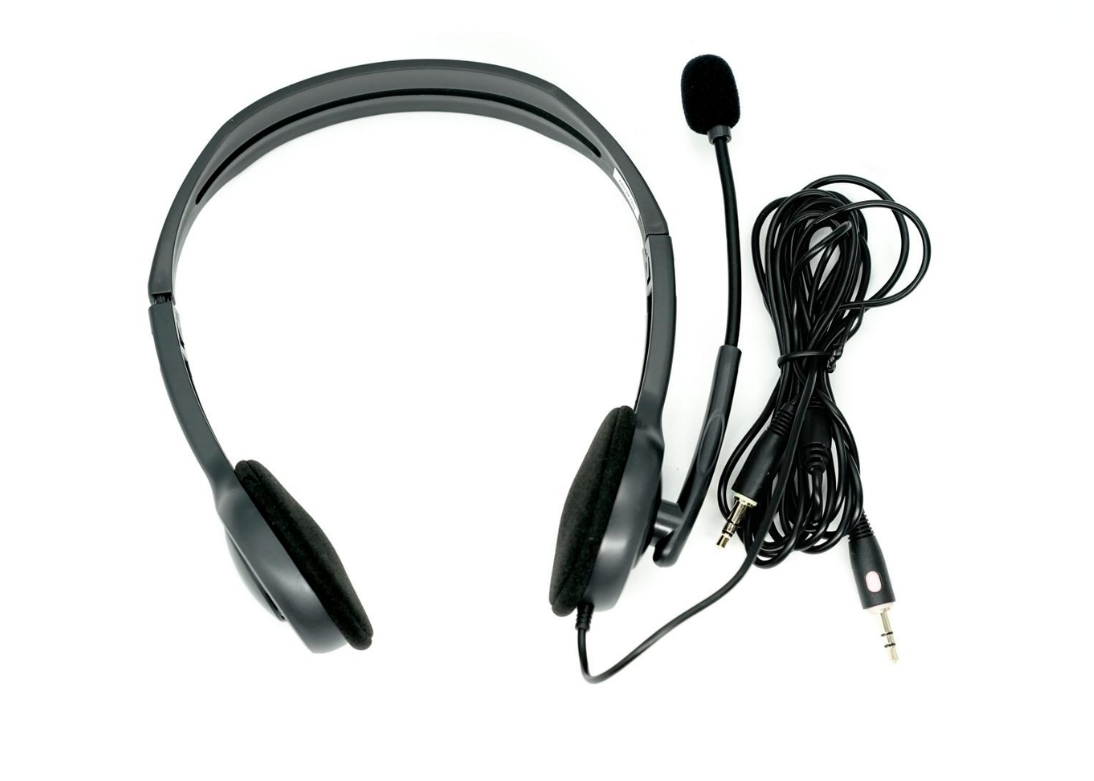

Headphone for Interpreter
Functions
- Up to 64 language channels (including original sound channel)
- Support for up to 1000 translation units in the system
- Hot-swappable support
- Direct and relay translation capabilities
- Hearing protection function
- Translation units can be set as operation units, enabling internal communication between translation units and operation units
- Language and system configuration can be configured in the menu of the interpretation unit
- SMS and tea request functions
- COUGH key to mute the microphone to avoid unnecessary sound output
- SLOW button available
- Two sets of headphone microphone and headphone jacks, allowing two interpreters to work on the translation unit
- Separate volume adjustment for speakers and headphones; if all microphones in the same booth are turned off, the speakers will play floor language or translation channels
- Supports headphone microphones and detachable microphones
- Channel interlocking function allows activation of only one microphone on a channel at a time, ensuring the uniqueness of the language channel
- Two necessary modes in a translation room: interlocking and covering
- Preset shortcuts for channels 1, 2, 3, 4, 5, 6, 7 for quick selection of input channels
- Preset shortcuts for A-B-C for quick selection of output channels
- Supports IC card authentication and translation timing functions

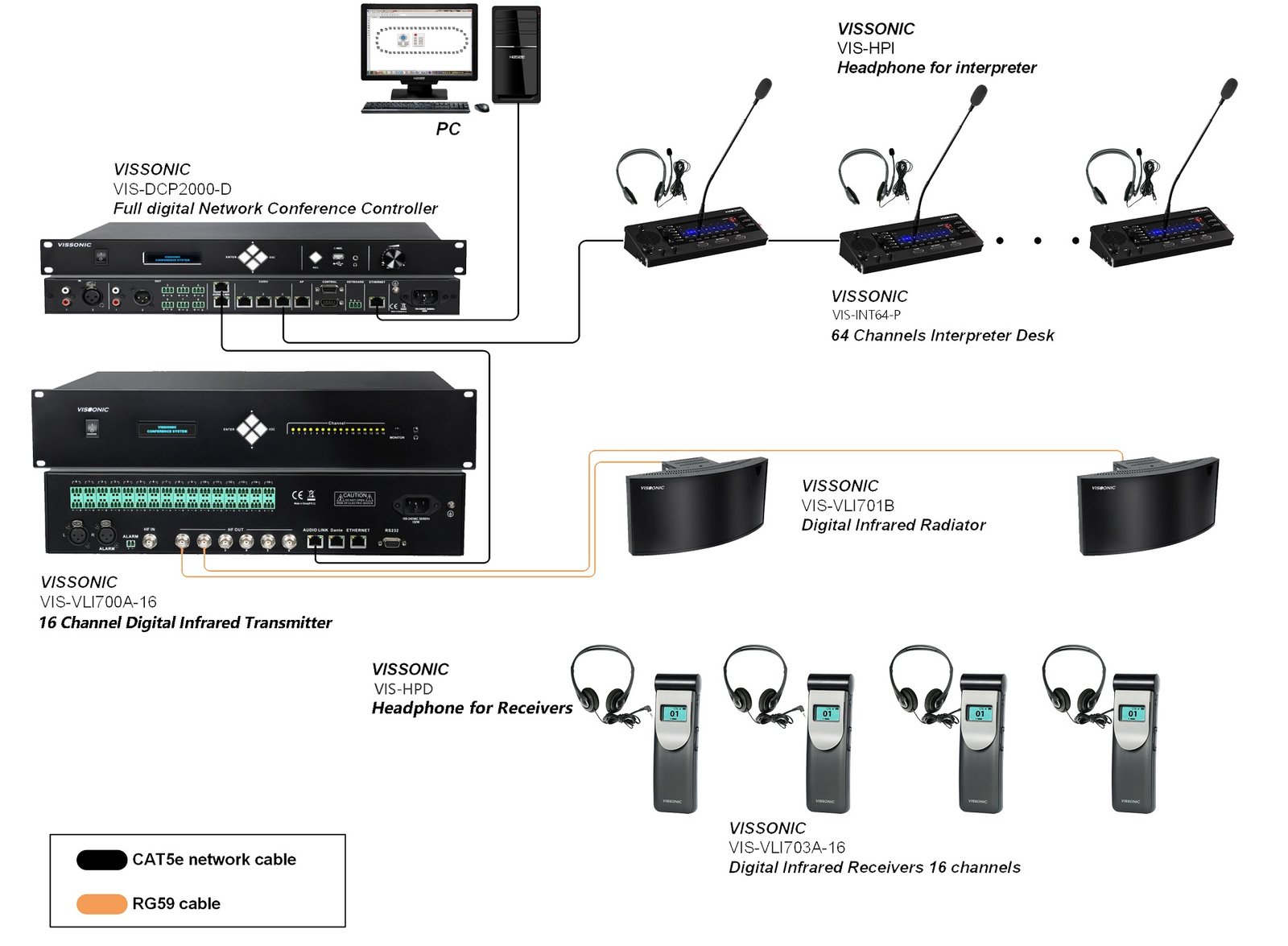

System Diagram
